Stator Coil

Inspect the continuity between the stator coil terminals. If continuity is not as shown in the table, replace the stator coil.

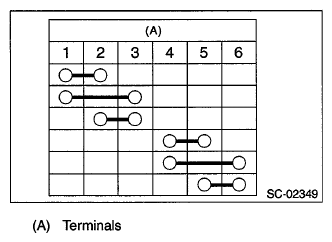

Fig 1: Continuity Terminal Chart

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Inspecting Continuity Between Stator Coil Terminals

Courtesy of SUBARU OF AMERICA, INC.

Inspect the continuity between the stator coil stator core and lead wire terminals. If there is continuity, replace the stator coil because the stator coil is grounded.

Fig 3: Inspecting Continuity Between Stator Coil Stator Core And Lead Wire Terminals

Courtesy of SUBARU OF AMERICA, INC.
