Transmission Harness: Removal

  1. Remove the transmission from the vehicle. Ref. to REMOVAL , Automatic Transmission Assembly.
  2. Remove the transmission harness ground terminal and remove the harness connectors from front wheel speed sensor and secondary speed sensor.

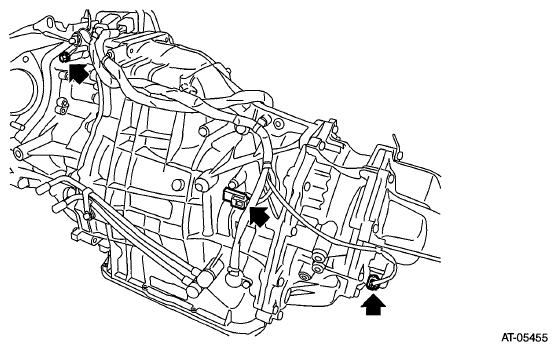

    Fig 1: Locating Front Wheel Speed Sensor And Secondary Speed Sensor
    G06654465Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the harness connectors from inhibitor switch, primary speed sensor and secondary pressure sensor.

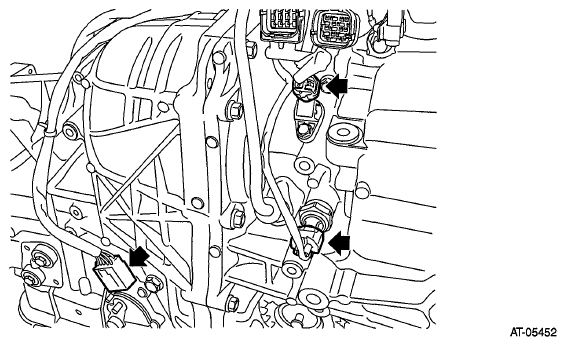

    Fig 2: Locating Inhibitor Switch, Primary Speed Sensor And Secondary Pressure Sensor
    G06654466Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the transmission harness stay.

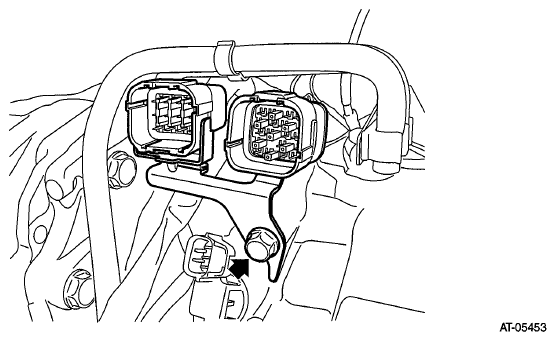

    Fig 3: Locating Transmission Harness Stay
    G06654467Courtesy of SUBARU OF AMERICA, INC.
  5. Remove transmission harness connector and inhibitor harness connector from harness stay.
  6. Remove the control valve body. Ref. to REMOVAL , Control Valve Body.
  7. Remove the mounting bolt to pull out the bushing of transmission harness from transmission case round hole.

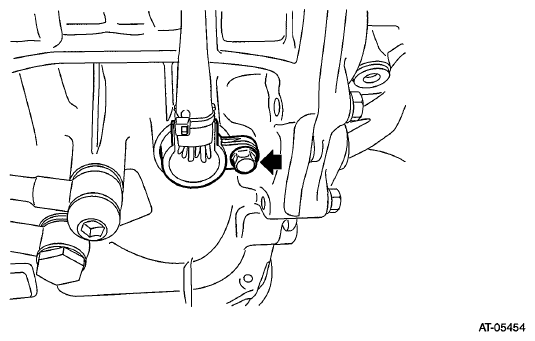

    Fig 4: Locating Mounting Bolt
    G06654468Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the harness clip from transmission assembly.
