Reduction Driven Gear: Removal
- Remove the transmission from the vehicle. Ref. to
REMOVAL , Automatic Transmission Assembly.
- Remove the extension case. Ref. to
REMOVAL , Extension Case.
- Remove the rear drive shaft. Ref. to
REMOVAL , Rear Drive Shaft.
- Remove the transfer clutch assembly. Ref. to
REMOVAL , Transfer Clutch.
- Remove the transfer reduction driven gear assembly. Ref. to
REMOVAL , Transfer Reduction Driven Gear.
- Remove the intermediate case. Ref. to
REMOVAL , Intermediate Case.
- Remove the forward clutch assembly. Ref. to
REMOVAL , Forward Clutch Assembly.

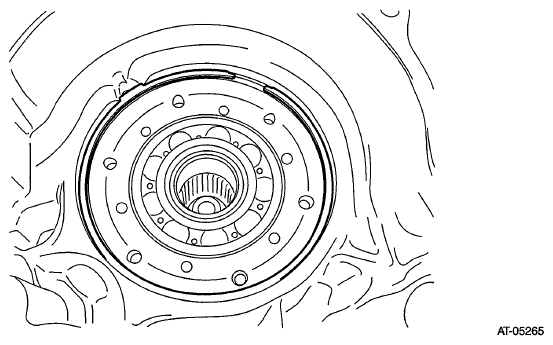

- Remove the snap ring.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the reduction driven gear assembly.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the straight pin.
Courtesy of SUBARU OF AMERICA, INC.
