Parking Pawl: Installation

  1. Set the range select lever to the "N" range.
  2. Install the parking pawl shaft, return spring and parking pawl.
    NOTE: Make sure the return spring sticks out of parking pawl.

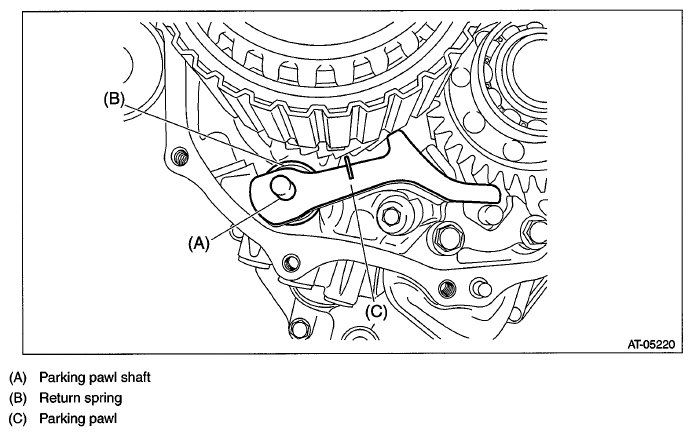

    Fig 1: Identifying Parking Pawl Shaft, Return Spring And Parking Pawl
    G06654541Courtesy of SUBARU OF AMERICA, INC.
  3. Install the extension case. Ref. to INSTALLATION , Extension Case.
  4. Install the transmission assembly to the vehicle. Ref. to INSTALLATION , Automatic Transmission Assembly.
