Front Reduction Drive Gear: Adjustment

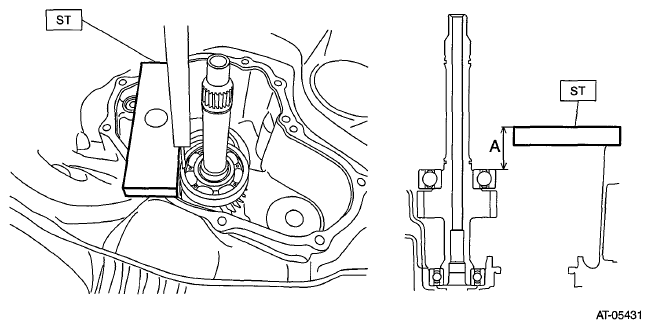

Measure height "A" from the ST upper face to the bearing end face using the ST.
ST 398643600 GAUGE

Fig 1: Measuring Height "A" From ST Upper Face To Bearing End Face
Courtesy of SUBARU OF AMERICA, INC.
Measure depth "B" from the converter case cover upper face to the bearing catch surface.

Fig 2: Measuring Depth "B" From Converter Case Cover Upper Face To Bearing Catch Surface
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, measure height "C" from the ST upper face to the converter case cover mating surface.
ST 398643600 GAUGE

Fig 3: Measuring Height "C" From ST Upper Face To Converter Case Cover Mating Surface
Courtesy of SUBARU OF AMERICA, INC.

Calculate clearance "T" using the following formula.

Calculation formula:

T mm = (A - 15) - ((C - 15) - B)

[T in = (A - 0.591) - ((C - 0.591) - B)]

T: Clearance

A: Depth from the ST upper face to the bearing end surface

B: Depth from the converter case cover upper face to the bearing catch surface

C: Height from the ST upper face to the converter case cover mating surface

15 mm (0.591 in): Thickness of ST

THICKNESS CHART
