Drive Pinion Shaft Assembly: Disassembly

Remove the drive pinion assembly.

Fig 1: Locating Drive Pinion Assembly
Courtesy of SUBARU OF AMERICA, INC.
Flatten the tab of the lock nut.
Using ST1 and ST2, fix at the spline portion of drive pinion shaft to remove the lock nut.
ST1 18620AA000 WRENCH

ST2 18667AA010 HOLDER

Fig 2: Identifying ST1 18620AA000 Wrench And ST2 18667AA010 Holder
Courtesy of SUBARU OF AMERICA, INC.
Remove the taper roller bearing and outer race from drive pinion shaft.

Fig 3: Removing Taper Roller Bearing And Outer Race
Courtesy of SUBARU OF AMERICA, INC.

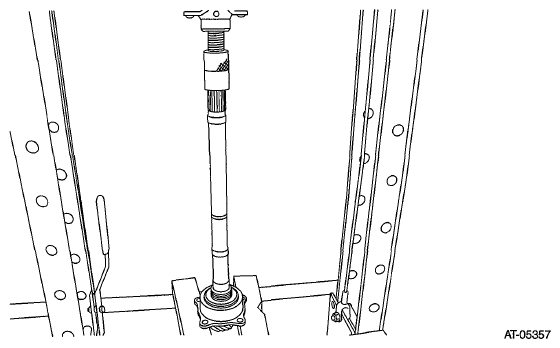

Separate the front roller bearing from the drive pinion shaft using the ST.
ST 498077000 REMOVER

Fig 4: Identifying ST 498077000 Remover
Courtesy of SUBARU OF AMERICA, INC.

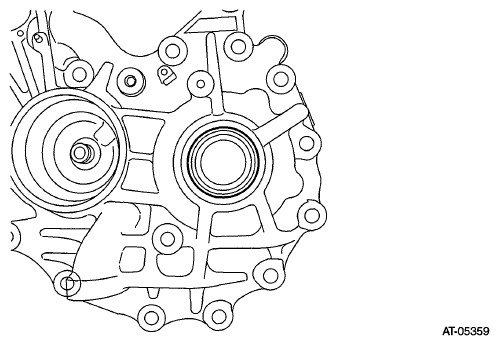

Remove the two oil seals using a screwdriver wrapped with cloth etc.
CAUTION: Do not damage the fitting surface of drive pinion bearing.

Fig 5: Identifying Oil Seal
Courtesy of SUBARU OF AMERICA, INC.
Remove the plug from drive pinion retainer.
