Components With Torque Specifications

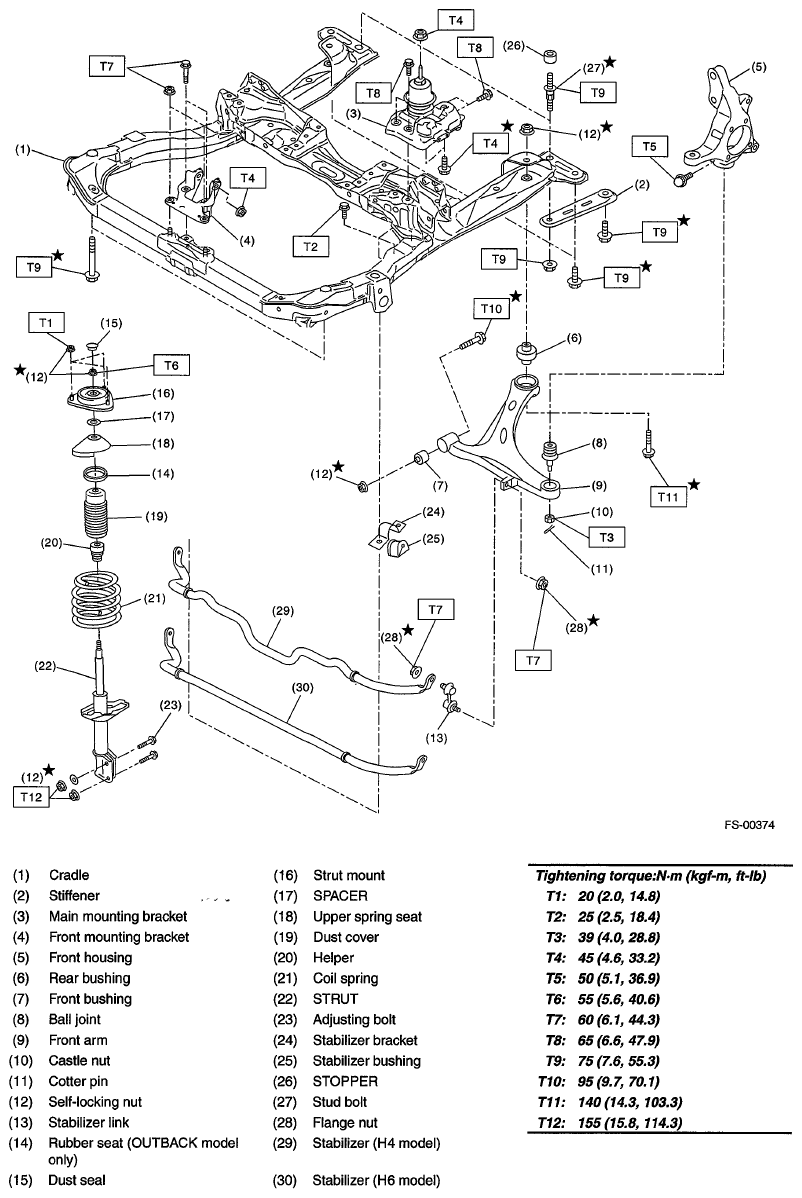

Fig 1: Front Suspension Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 20 (2.0, 14.8)

T2: 25(2.5, 18.4)

T3: 39 (4.0, 28.8)

T4: 45 (4.6, 33.2)

T5: 50 (5.1, 36.9)

T6: 55 (5.6, 40.6)

T7: 60 (6.1, 44.3)

T8: 65 (6.6, 47.9)

T9: 75 (7.6, 55.3)

T10: 95 (9.7, 70.1)

T11: 140 (14.3, 103.3)

T12: 155 (15.8, 114.3)
