Intake Manifold

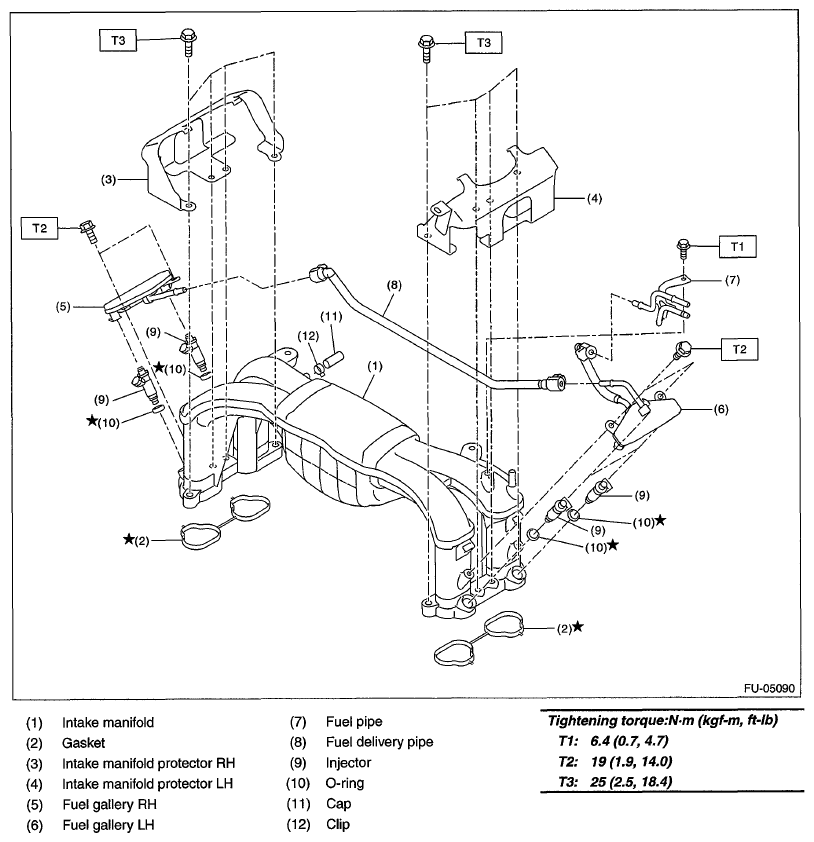

Fig 1: Intake Manifold Replacement Components With Torque Specifications
G06648233Courtesy of SUBARU OF AMERICA, INC.
