Front Drive Shaft Assembly

FRONT DRIVE SHAFT ASSEMBLY SPECIFICATION

Model Type of drive shaft Axle diameterø mm (in) Axle length mm (in)
All models AC + AAR 22.67 (0.89) 352.4 (13.87)

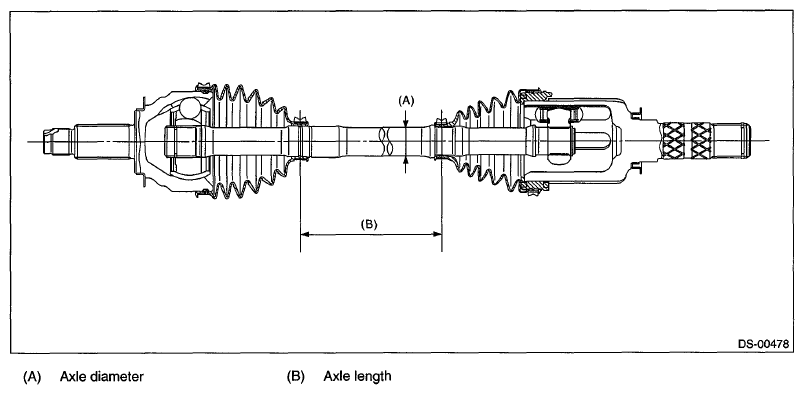

Fig 1: Identifying Front Axle Diameter And Length
G06650254Courtesy of SUBARU OF AMERICA, INC.
