Component Description

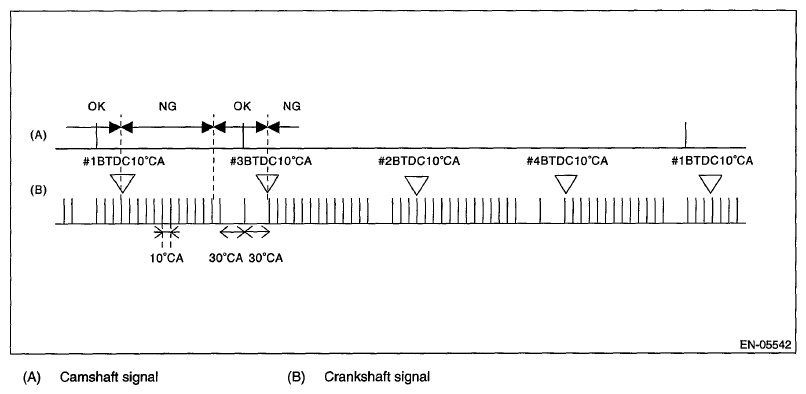

Fig 1: Identifying Camshaft Position Sensor Signals
G06651124Courtesy of SUBARU OF AMERICA, INC.

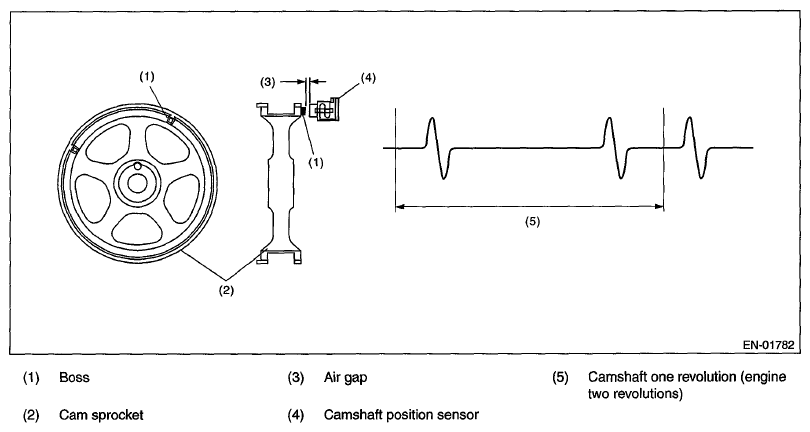

Fig 2: Identifying Camshaft Position Sensor Air Gap And Cam Sprocket
G06651125Courtesy of SUBARU OF AMERICA, INC.
