Shift Link Assembly: Removal

Remove the manual transmission assembly from the vehicle. Ref. to REMOVAL , Manual Transmission Assembly.
Remove the back-up light switch neutral position switch. Ref. to REMOVAL , Switches and Harness.
Remove the transfer case together with the extension case assembly. Ref. to REMOVAL , Transfer Case and Extension Case Assembly.
Remove the extension case assembly.
Pull out the straight pin.

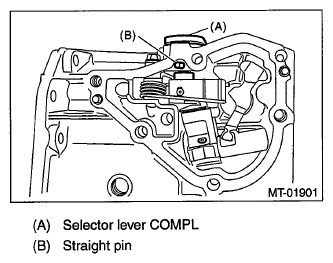

Fig 1: Identifying Selector Lever COMPL And Straight Pin
Courtesy of SUBARU OF AMERICA, INC.
Drive out the spring pin by tapping with the ST, and remove the select lever COM PL.
ST 398791700 SPRING PIN REMOVER 2

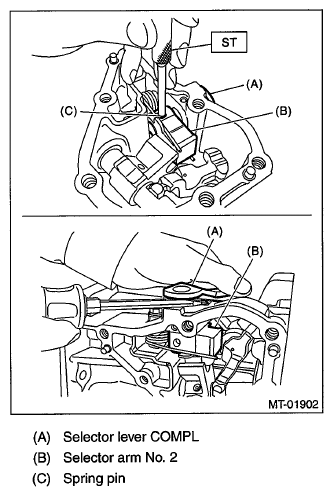

Fig 2: Removing Select Lever COM PL
Courtesy of SUBARU OF AMERICA, INC.
Pull out the selector arm No. 2 from neutral set spring.

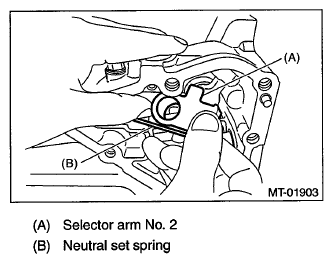

Fig 3: Pulling Out Selector Arm No. 2 From Neutral Set Spring
Courtesy of SUBARU OF AMERICA, INC.
Remove the shifter arm collar and neutral set spring from transfer case.

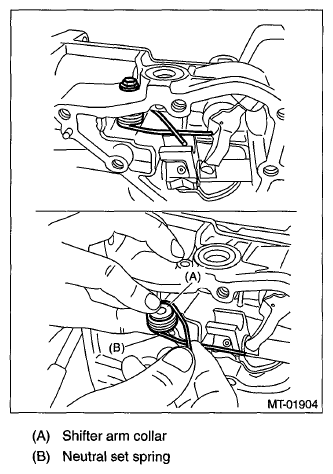

Fig 4: Removing Shifter Arm Collar And Neutral Set Spring From Transfer Case
Courtesy of SUBARU OF AMERICA, INC.
Remove the shifter arm No. 2, washers and thrust bearing from transfer case.

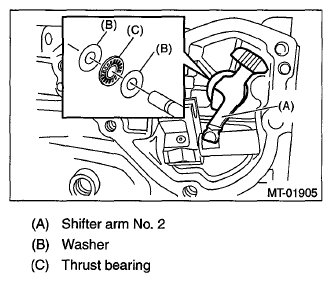

Fig 5: Identifying Shifter Arm No. 2, Washers And Thrust Bearing
Courtesy of SUBARU OF AMERICA, INC.
Drive out the spring pin by tapping with the ST, and remove the shifter arm and selector arm.
ST 398791700 SPRING PIN REMOVER 2

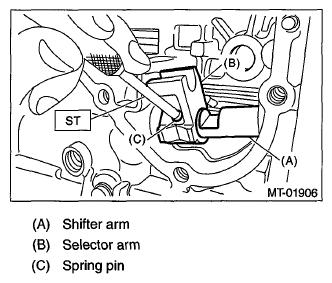

Fig 6: Removing Shifter Arm And Selector Arm
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil seal from transfer case using a screwdriver.
NOTE: The illustration shows the oil seal of select lever COMPL. Perform the same procedures for removing the shifter arm No. 2.

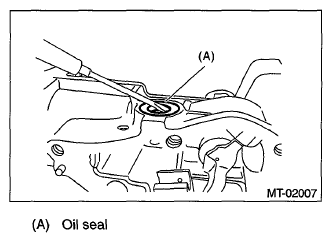

Fig 7: Removing Oil Seal
Courtesy of SUBARU OF AMERICA, INC.
Remove the needle bearing from the transfer case.
NOTE:
- Use the round bar with diameter of 20 - 21 mm (0.79 - 0.83 in).
- By pushing the flange surface (stamp mark side), press it into the transfer case to remove.

  Fig 8: Locating Needle Bearing
  Courtesy of SUBARU OF AMERICA, INC.
Remove the roll bearing from the transfer case.
NOTE: Use the round bar with diameter of 22 - 23 mm (0.87 - 0.91 in).

Fig 9: Locating Roll Bearing
Courtesy of SUBARU OF AMERICA, INC.
Remove the plunger and check ball spring from transmission cover.

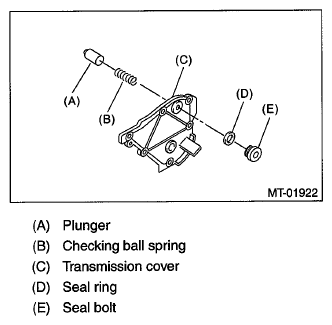

Fig 10: Identifying Plunger And Check Ball Spring With Seal Ring
Courtesy of SUBARU OF AMERICA, INC.
