Grip ASSY

  1. Remove the cover grip AT.

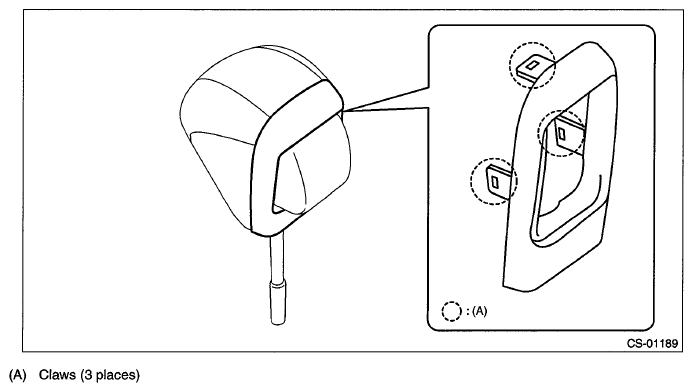

    Fig 1: Identifying Cover Grip Claws
    G06651723Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the button assembly-AT.

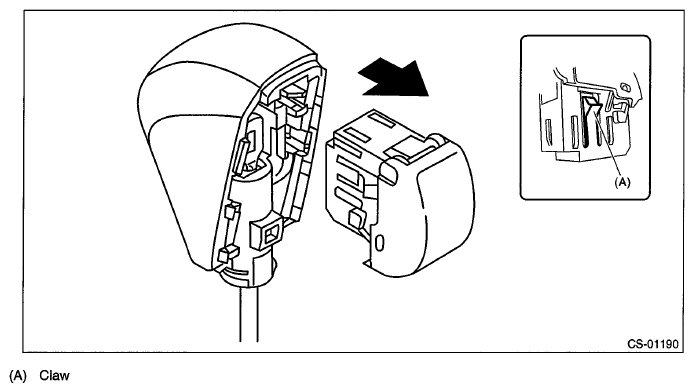

    Fig 2: Removing Button Assembly-AT
    G06651724Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the rod COM PL.
