Lift And Jack

When using a lift or shop jack to raise a vehicle or using rigid rack to support a vehicle, always follow instructions concerning jack-up points and weight limits to prevent the vehicle from falling, which could result in injury. Be especially careful that the vehicle is balanced before raising it. Be sure to set the wheel stoppers when jacking-up only the front or rear side of the vehicle.

CAUTION: Not to let the side sill cover interfere with the lift arm, use an attachment.

NOTE:

When using a lift, follow its operation service information before work.
When using, insert the body flange to the attachment groove.
When the side sill cover contacts the lift arm, use a lift attachment.
Do not work or leave unattended while the vehicle is supported with jack, support it with rigid racks.
Be sure to use the rigid racks with rubber attached to cradle to support the vehicle.
When using a plate lift, use a rubber attachment.

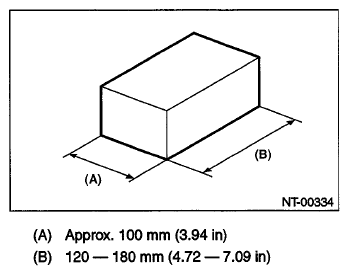

Fig 1: Identifying Rubber Attachment Dimensions
Courtesy of SUBARU OF AMERICA, INC.

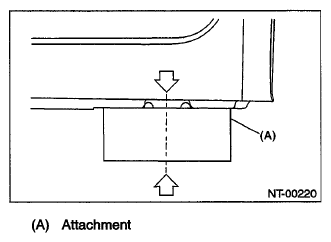

When using an attachment, align the center of attachment with the center of vehicle cutout portion (the center of spoiler cutout portion).
Model without side sill spoiler
For the models without side sill spoiler, align the center of attachment with the center of vehicle cutout portions.

Front

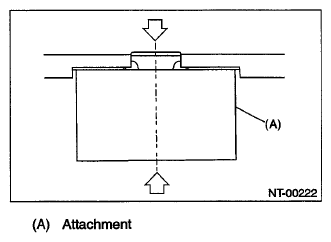

Fig 2: Identifying Model Without Side Sill Spoiler (Front)
Courtesy of SUBARU OF AMERICA, INC.

Rear

Fig 3: Identifying Model Without Side Sill Spoiler (Rear)
Courtesy of SUBARU OF AMERICA, INC.
Model with side sill spoiler
For the models with side sill spoiler, align the center of attachment with the center of vehicle cutout portion (the center of spoiler cutout portion).

Front

Fig 4: Identifying Model With Side Sill Spoiler (Front)
Courtesy of SUBARU OF AMERICA, INC.

Rear

Fig 5: Identifying Model With Side Sill Spoiler (Rear)
Courtesy of SUBARU OF AMERICA, INC.
Do not use the plate lift whose attachment does not reach the supporting locations. Supporting locations

Fig 6: Plate Lift Supporting Locations
Courtesy of SUBARU OF AMERICA, INC.

Pantograph jack

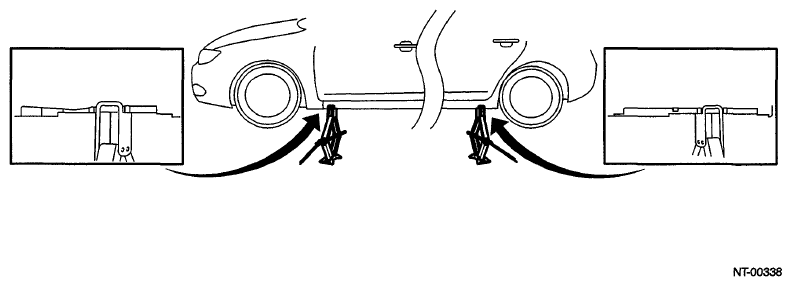

Fig 7: Pantograph Jack Supporting Locations
Courtesy of SUBARU OF AMERICA, INC.

Lift

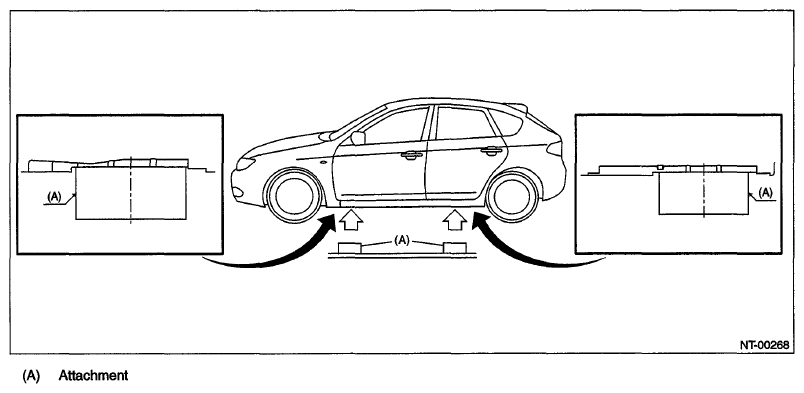

Fig 8: Lift Attachment Location
Courtesy of SUBARU OF AMERICA, INC.

Rigid rack

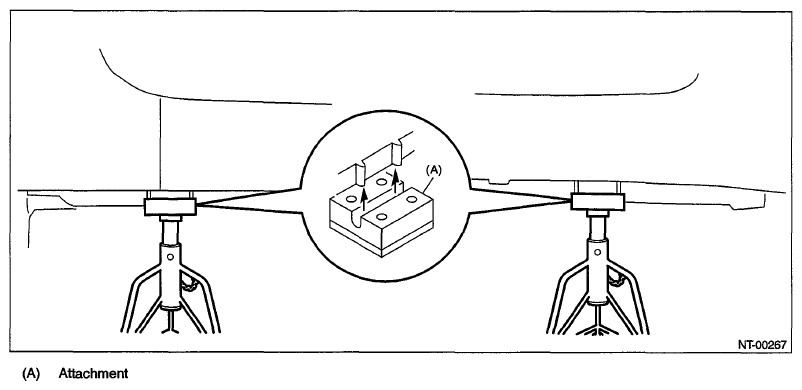

Fig 9: Rigid Rack Attachment Location
Courtesy of SUBARU OF AMERICA, INC.

Plate lift

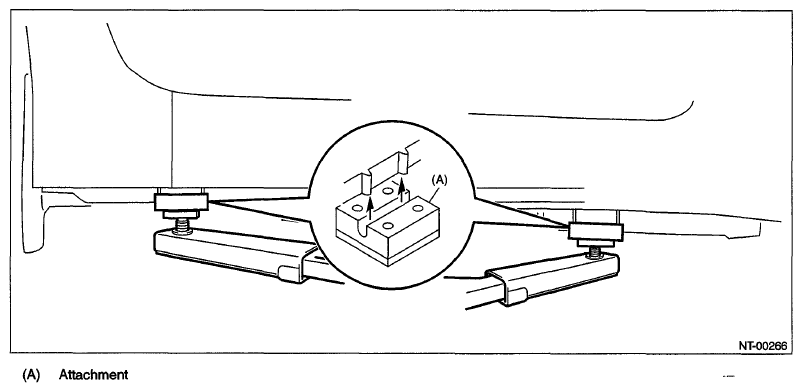

Fig 10: Plate Lift Attachment Location
Courtesy of SUBARU OF AMERICA, INC.

Garage jack

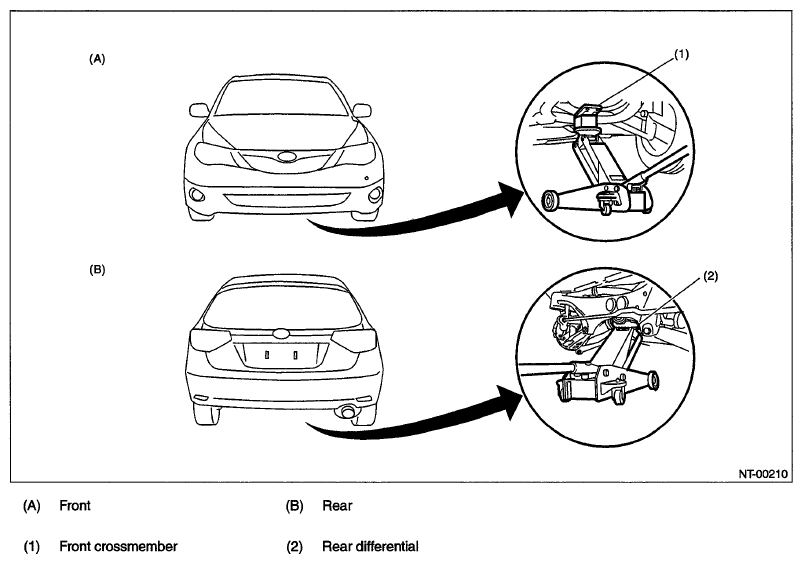

Fig 11: Garage Jack Attachment Location
Courtesy of SUBARU OF AMERICA, INC.
