Oil Pump

WARNING: This page is about a different variant/trim than selected.

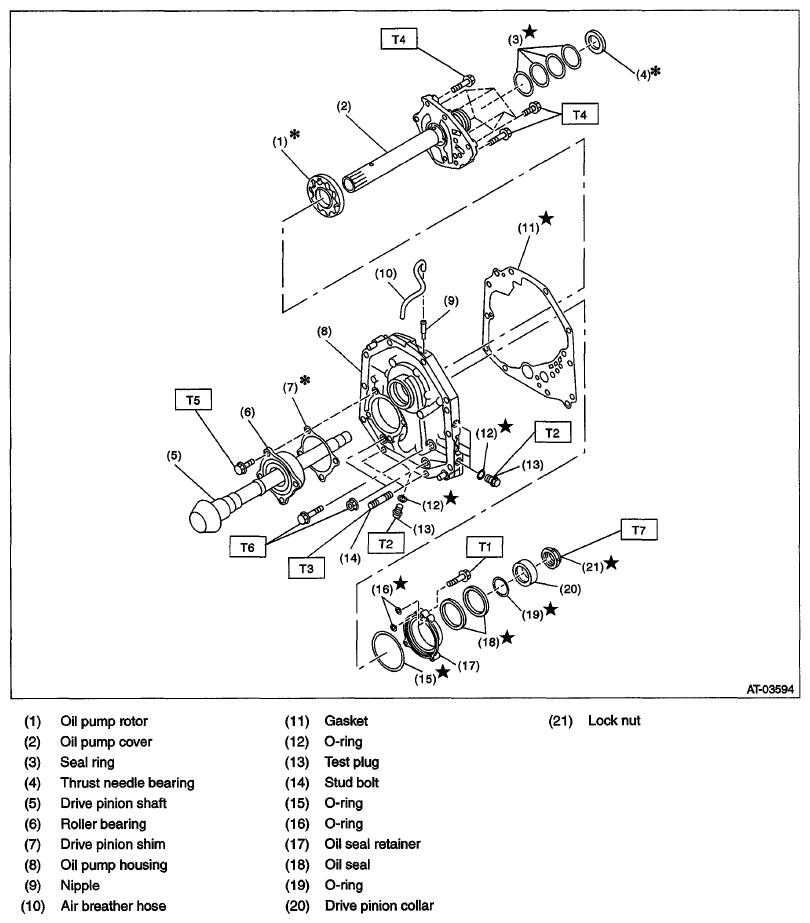

Fig 1: Identifying Oil Pump Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7 (0.7,5.2)

T2: 13 (1.3, 9.6)

T3: 18 (1.8,13.3)

T4: 25 (2.5,18.4)

T5: 40 (4.1,29.5)

T6: 42 (4.3,31.0)

T7: 116 (11.8,85.6)
