Components With Torque Specifications: Mirror

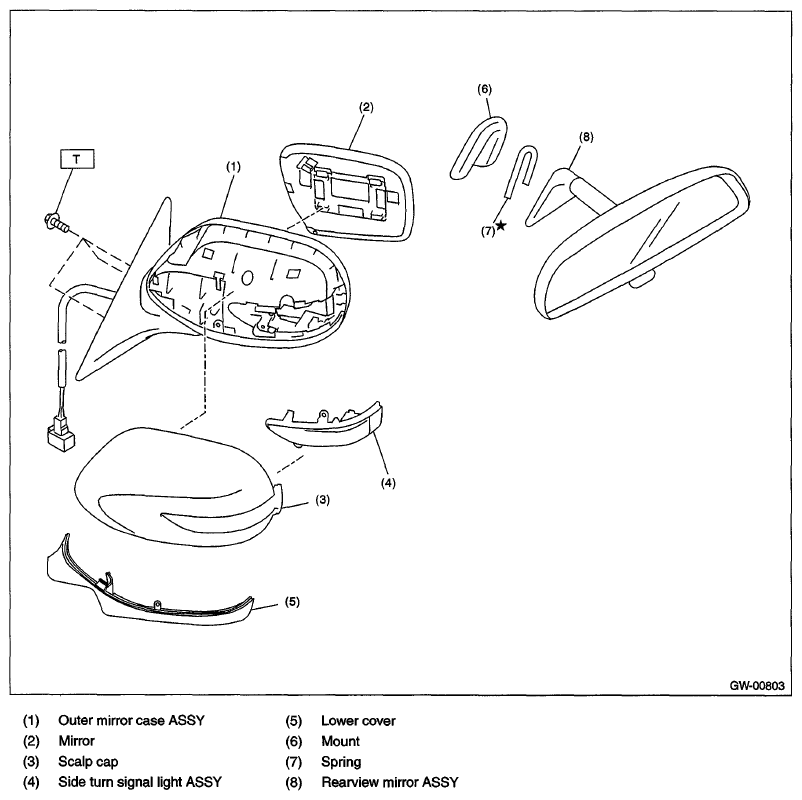

Fig 1: Identifying Mirror Components

G06347431

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 4.5 (0.46, 3.3)
