Select Cable: Installation

Install the select cable to plate assembly.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

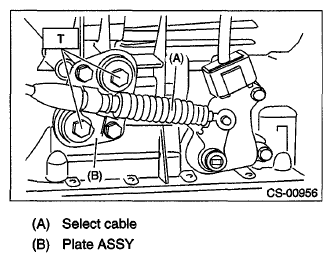

Fig 1: Identifying Select Cable To Plate Assembly Mounting Nuts
Courtesy of SUBARU OF AMERICA, INC.
Install the select cable to the shifter arm.
Install the plate assembly to transmission.
Tightening torque:

T: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

Fig 2: Identifying Select Cable And Plate Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install the washer and snap pin to the shifter arm.

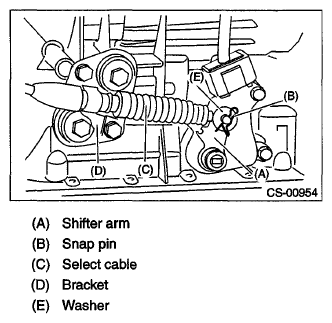

Fig 3: Identifying Washer And Snap Pin On Shifter Arm
Courtesy of SUBARU OF AMERICA, INC.
Install new clamp paying attention to the installing direction.

Fig 4: Identifying Position Of Installing Clamp
Courtesy of SUBARU OF AMERICA, INC.
Insert the tip of inner cable into connector hole of select lever, and fix the cable to bracket.

Fig 5: Inserting Tip Of Inner Cable Into Connector Hole Of Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Shift the select lever to the "N" range, and then adjust the select cable position. Refer to ADJUSTMENT , Select Cable.
Install the heat shield cover.

Fig 6: Identifying Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the front, center and rear exhaust pipes, and the muffler. (Non-turbo model) Refer to INSTALLATION , Front Exhaust Pipe. Refer to INSTALLATION , Center Exhaust Pipe. Refer to INSTALLATION , Rear Exhaust Pipe. Refer to INSTALLATION , Muffler.
Install the center, rear exhaust pipes and the muffler. (Turbo model) Refer to INSTALLATION , Center Exhaust Pipe. Refer to INSTALLATION , Rear Exhaust Pipe. Refer to INSTALLATION , Muffler.
