Transmission Control Module (TCM): Installation

  1. Install the TCM.

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

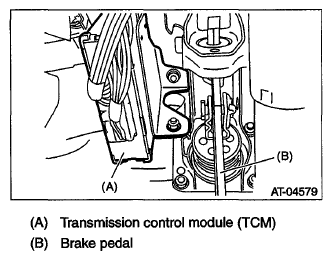

    Fig 1: Identifying Transmission Control Module
    G06349296Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the connector to TCM.
  3. Install in the reverse order of removal.
  4. Perform learning control promotion. Ref. to FACILITATION OF LEARNING CONTROL in OPERATION, Subaru Select Monitor.
