Transmission Case And Control Device

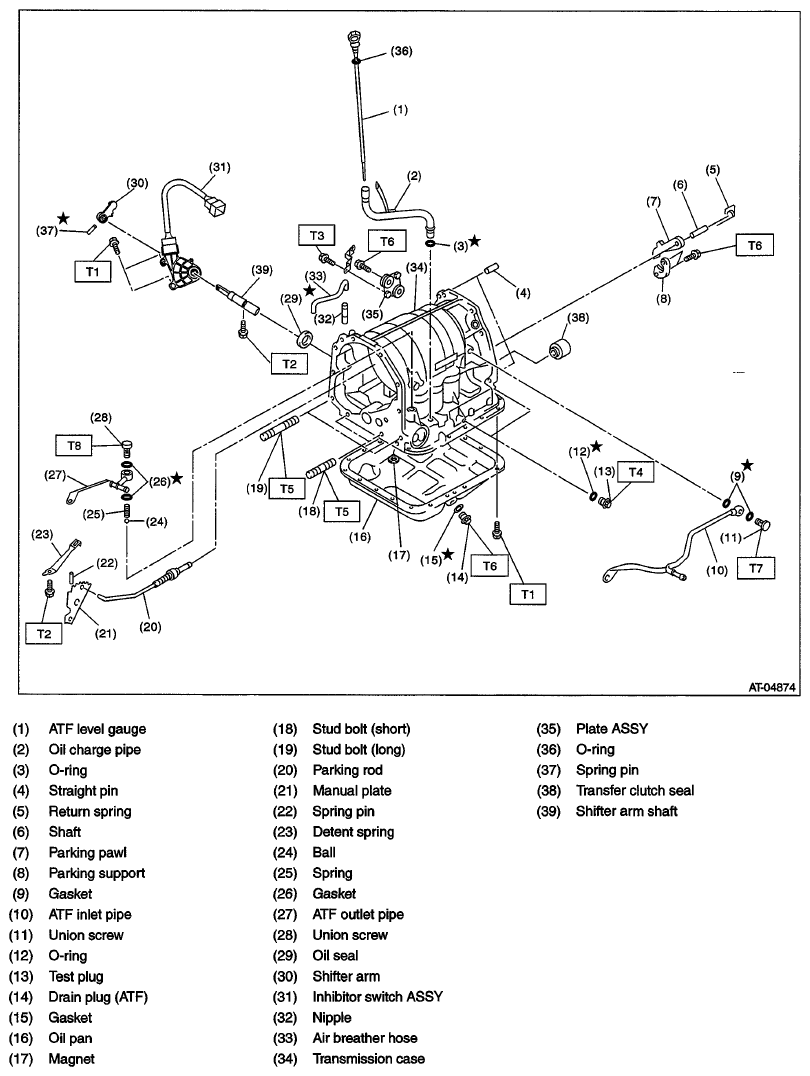

Fig 1: Identifying Transmission Case And Control Device Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.5,3.7)

T2: 6 (0.6,4.4)

T3: 12 (12,8.9)

T4: 13 (1.3,9.6)

T5: 18 (1.8,13.3)

T6: 25 (2.5,18.4)

T7: 40 (4.1,29.5)

T8: 45 (4.6,33.2)
