Control Valve And Harness Routing

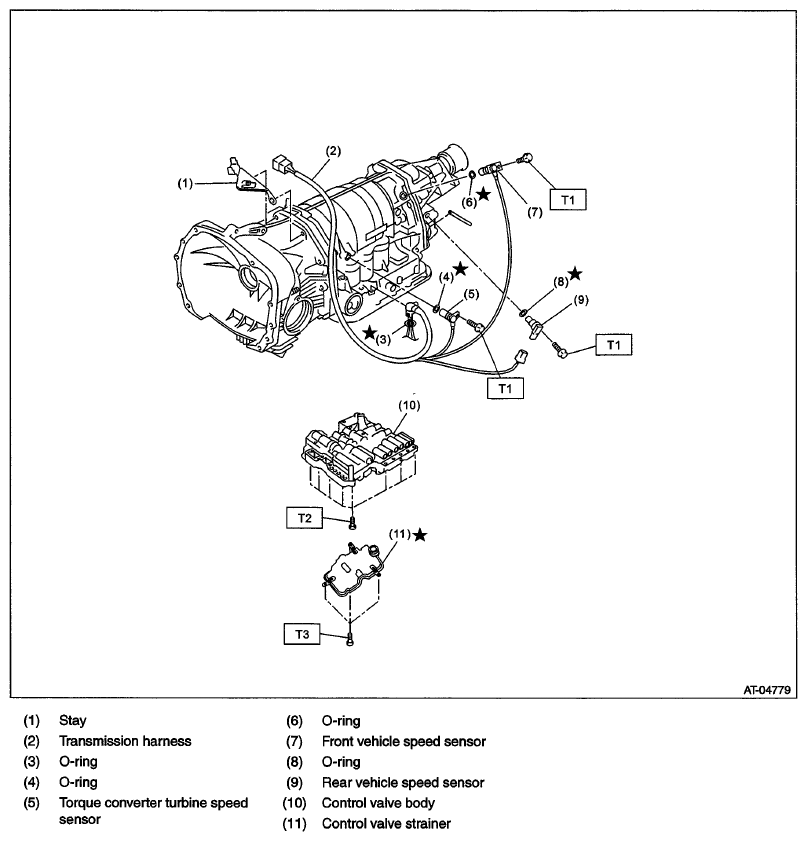

Fig 1: Identifying Control Valve And Harness Routing
G06349144Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7 (0.7,5.2)

T2: 8 (0.8,5.9)

T3: 10 (1.0,7.4)
