Jack-Up Point

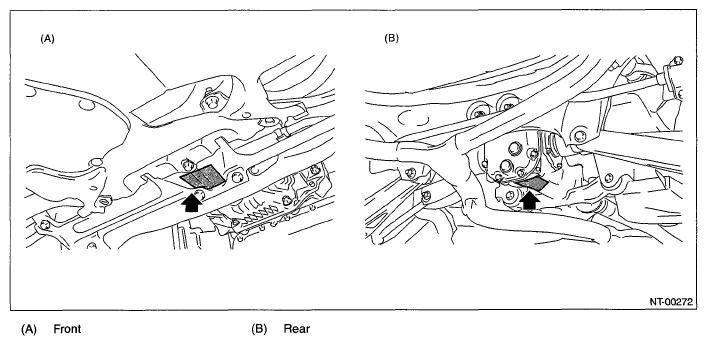

Fig 1: Identifying Jack-Up Points - Front And Rear
G05953507Courtesy of SUBARU OF AMERICA, INC.
CAUTION: If jacking up the front side of the vehicle, make sure that the jack is attached at the center of the jack-up plate not at the sides.
