Components With Torque Specifications: Starter

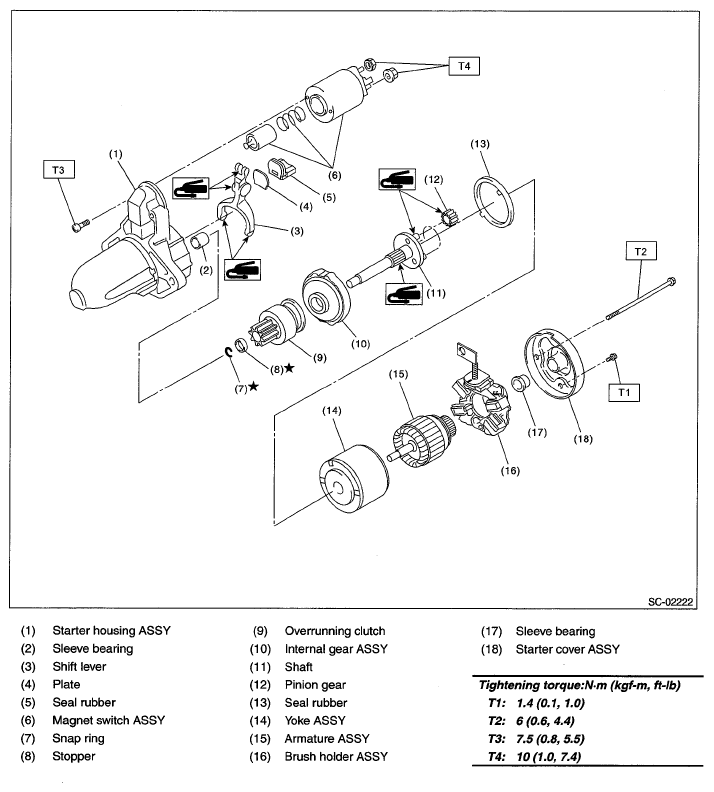

Fig 1: Starter Components With Torque Specifications

G05954370

Courtesy of SUBARU OF AMERICA, INC.
