Components With Torque Specifications: Mirror

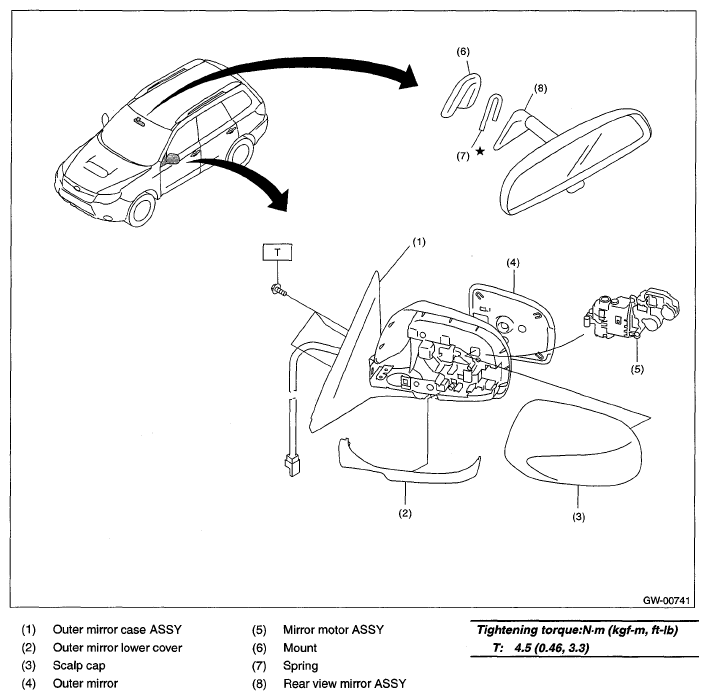

Fig 1: Mirror Replacement Components With Torque Specifications

G05957825

Courtesy of SUBARU OF AMERICA, INC.
