"P" Range Switch

  1. Remove the console box. Ref. to REMOVAL , Console Box.
  2. Disconnect the connector.
  3. Remove the connector from the base plate using a flat-tip screwdriver.
    Fig 1: Identifying Base Assembly Connector
    G05031915Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the terminal of "P" range switch from connector, using a flat-tip screwdriver with thin tip.

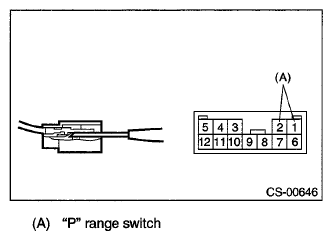

    Fig 2: Identifying P Range Switch Connector Terminals
    G06342784Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the clip while being careful not to break the pin, then remove the P range switch.

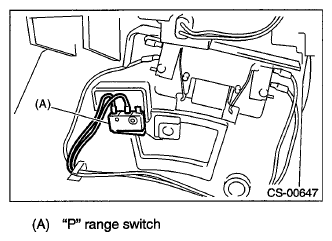

    Fig 3: Identifying P Range Switch
    G06342785Courtesy of SUBARU OF AMERICA, INC.
