At Shift Lock Solenoid

Install in the reverse order of removal.

NOTE: Connect the AT shift lock solenoid switch terminal to connector.

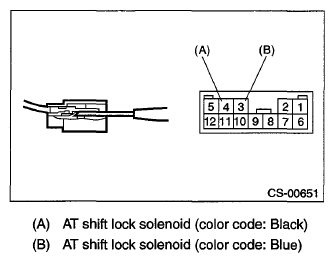

Fig 1: Identifying AT Shift Lock Solenoid Switch Connector Terminal
G06342790Courtesy of SUBARU OF AMERICA, INC.
