Parking Pawl: Installation

Set the transmission to the "N" range.
Install the parking pawl, parking pawl shaft and return spring.

Fig 1: Identifying Parking Pawl, Parking Pawl Shaft And Return Spring
Courtesy of SUBARU OF AMERICA, INC.
Install the parking support actuator.
Tightening torque:

10 ± 2 N.m (1.0 ± 0.2 kgf-m, 7.4 ± 1.5 ft-lb)

Fig 2: Identifying Parking Support Actuator
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, tighten the bolts which tightened in step 3) with specified angle.
Tightening angle:

17°±2°

ST 18854AA000 ANGLE GAUGE

NOTE: Do not use extension as much as possible.

Fig 3: Identifying Angle Gauge
Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Identifying Angle Gauge
Courtesy of SUBARU OF AMERICA, INC.
Make sure that the return spring is sticking out of the parking pole hole.

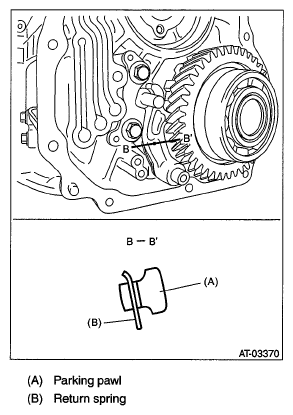

Fig 5: Identifying Parking Pawl And Return Spring
Courtesy of SUBARU OF AMERICA, INC.
Install the front vehicle speed sensor. Ref. to INSTALLATION , Front Vehicle Speed Sensor.
Install the center differential carrier. Ref. to INSTALLATION , Center Differential Carrier.
Install the extension case. Ref. to INSTALLATION , Extension Case.
Install the transmission assembly to the vehicle. Ref. to INSTALLATION , Automatic Transmission Assembly.
