Transfer Case, Extension Case & Reduction Gear

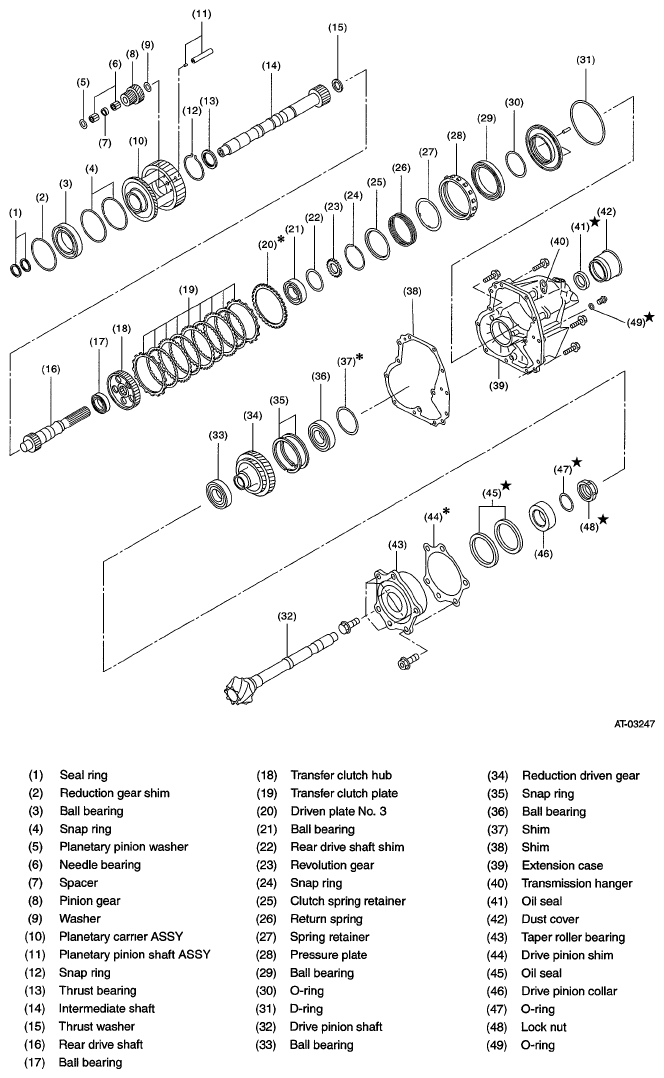

Fig 1: Exploded View Of Transfer Case, Extension Case And Reduction Gear

G06342800

Courtesy of SUBARU OF AMERICA, INC.
