When Using The Windshield Glass Knife

  1. Remove the front pillar trim (passenger' side) and disconnect the wiper deicer connector. (Models with wiper deicer)
  2. Remove the cowl panel. Ref. to REMOVAL , Cowl Panel .
  3. Remove the molding front.
  4. Tape the body side of the circumference of windshield glass for protection.
  5. Apply sufficient amount of soapy water to the adhesive part.
  6. Make a cut in the adhesive part using a cutter blade so that windshield glass knife can be inserted easily.
  7. Insert the windshield glass knife into adhesive part.
  8. While holding the knife edge and windshield glass edge at a right angle, move the windshield glass knife in parallel to the windshield glass edge along the surface and edge of windshield glass to cut the adhesive part.
    NOTE:
    • Do not twist the windshield glass knife.
    • Cutting of adhesive part shall be started with wider gap between windshield glass and body.

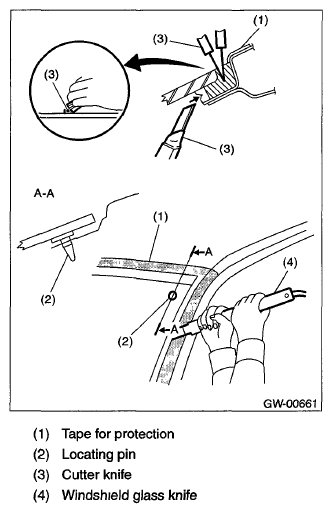

      Fig 1: Identifying Windshield Glass Knife And Pin
      G06341251Courtesy of SUBARU OF AMERICA, INC.
    • The locating pins are bonded to the corners of glass. Use piano wire to disconnect the pins.
      Fig 2: Identifying Locating Pins And Body Panel
      G06341252Courtesy of SUBARU OF AMERICA, INC.
