Front Hood Lock And Remote Openers

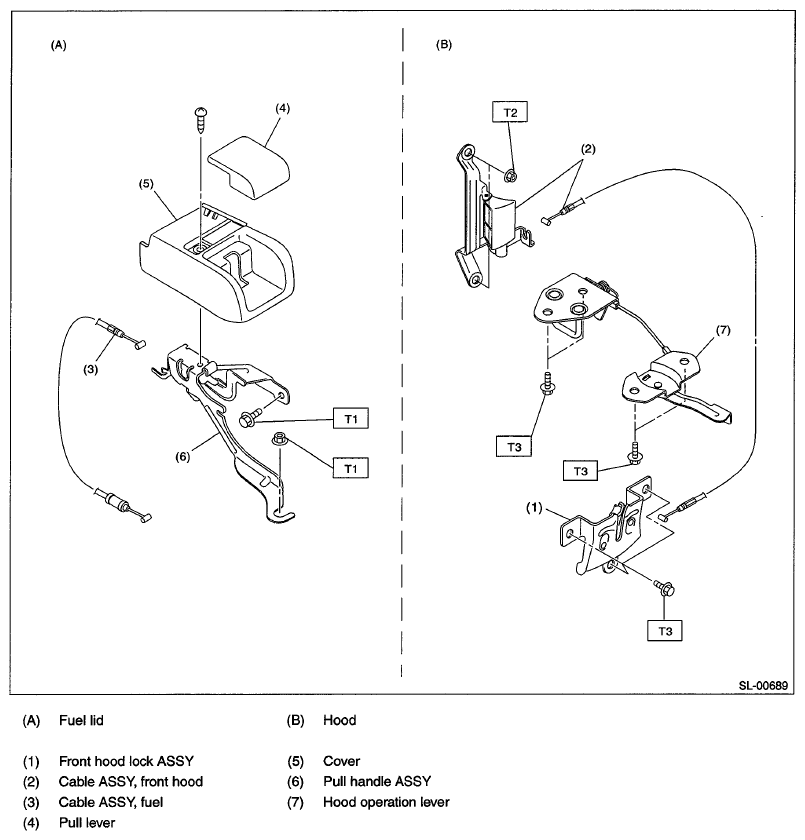

Fig 1: Exploded View Of Front Hood Lock And Remote Openers
G06341399Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 25 (2.55, 18.4)

T3: 33.0 (3.36, 24.3)
