Wiper System & Washer System - Washer System & Wiper System
>>
General Description
>>
Components With Torque Specifications
>>
Front Wiper
Front Wiper

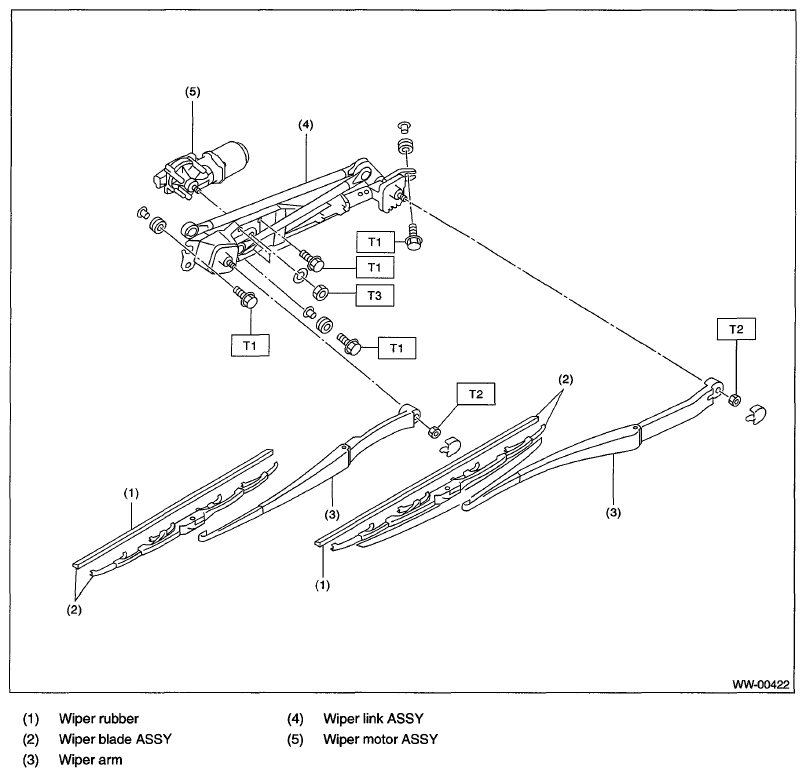

Fig 1: Identifying Front Wiper Components
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.0 (0.61, 4.4)
T2: 20 (2.0, 14.8)
T3: 31 (3.2, 22.9)
Courtesy of SUBARU OF AMERICA, INC.
