Transfer Driven Gear: Installation

Install the bearing outer races to extension case and transfer case.

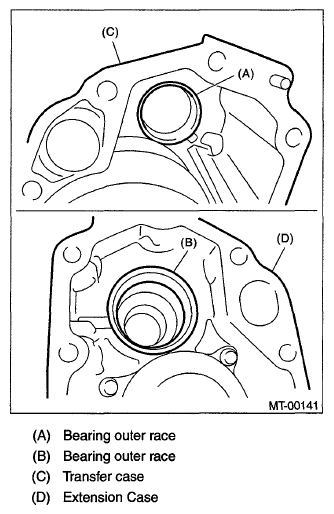

Fig 1: Identifying Bearing Outer Races And Extension Case
Courtesy of SUBARU OF AMERICA, INC.
Install the transfer driven gear.

Fig 2: Identifying Transfer Driven Gear
Courtesy of SUBARU OF AMERICA, INC.
Install the transfer case and the extension case assembly. Ref. to INSTALLATION , Transfer Case and Extension Case Assembly.
Install the back-up light switch neutral position switch. Ref. to INSTALLATION , Switches and Harness.
Install the manual transmission assembly to the vehicle. Ref. to INSTALLATION , Manual Transmission Assembly.
