Transfer Driven Gear: Assembly

Using the ST, install the roller bearing (extension case side).
ST1 398177700 INSTALLER

ST2 899864100 REMOVER

CAUTION: Do not apply a load in excess of 10 kN (1 ton, 1.1 US ton, 1.0 lmp ton).

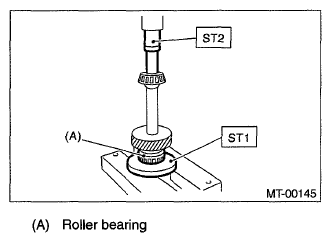

Fig 1: Identifying ST1 398177700 Installer And ST2 899864100 Remover
Courtesy of SUBARU OF AMERICA, INC.
Using ST, install the roller bearing (transfer case side).
ST 499757002 INSTALLER

CAUTION: Do not apply a load in excess of 10 kN (1 ton, 1.1 US ton, 1.0 lmp ton).

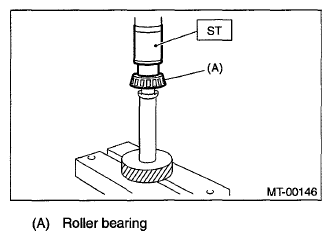

Fig 2: Identifying ST 499757002 Installer
Courtesy of SUBARU OF AMERICA, INC.
