Transmission Case

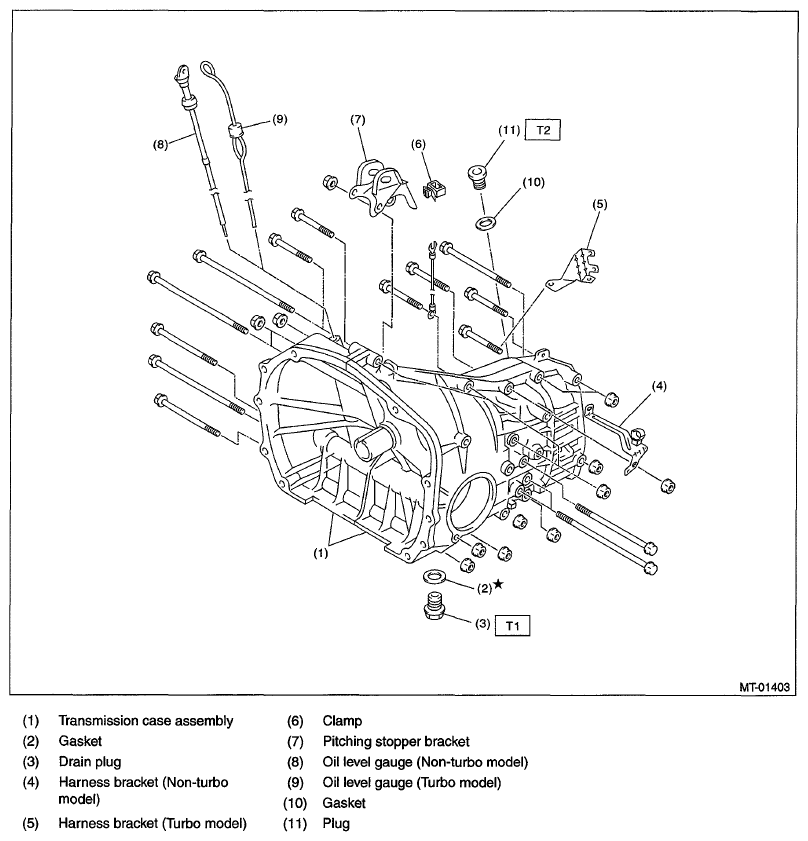

Fig 1: Identifying Transmission Case Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 44 (4.5, 32.5) (Aluminum gasket)

70 (7.1, 51.6) (Copper gasket)

T2: 60 (6.1, 44.3)

Transmission case tightening torque

Courtesy of SUBARU OF AMERICA, INC.	Bolt No.	Bolt size mm	Tightening torque: N.m (kgf-m, ft-lb)
	(5)-(15)	8	25 (2.5, 18.4)
	(1)-(4) (16), (17)	10	39 (4.0, 28.8)
