Main Shaft For Single-Range
Main Shaft For Single-Range

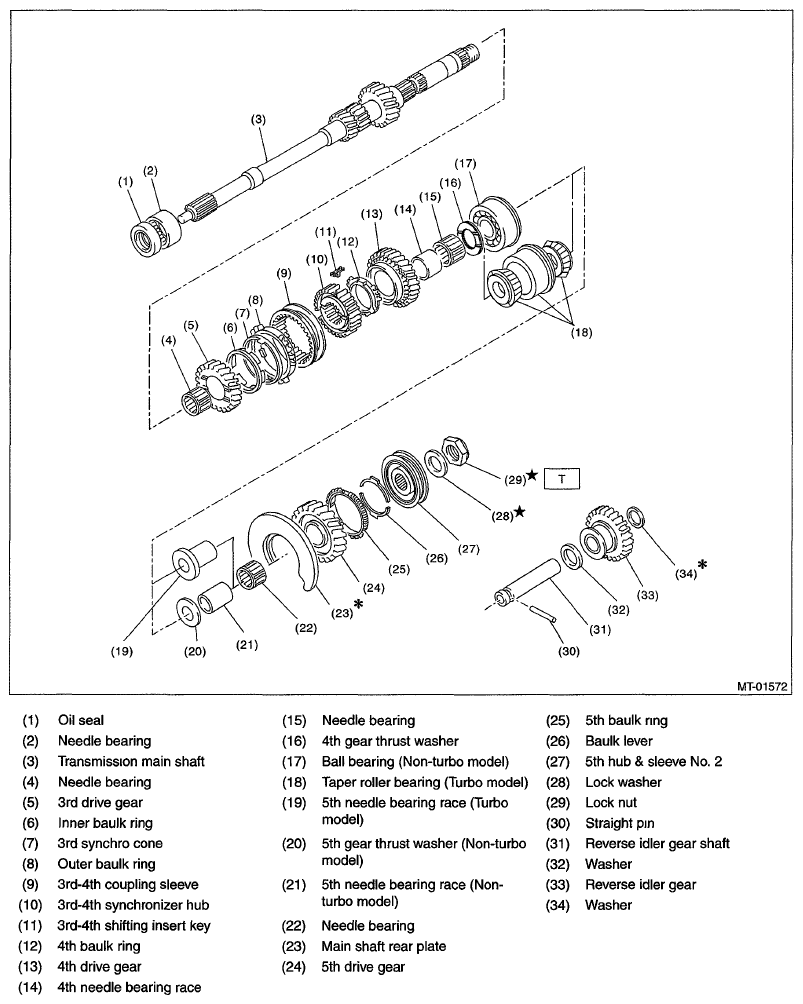

Fig 1: Identifying Main Shaft For Single-Range Components
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 120 (12.2, 88.5)
Courtesy of SUBARU OF AMERICA, INC.
