Differential Case Assembly

Loosen the twelve bolts and remove hypoid driven gear.

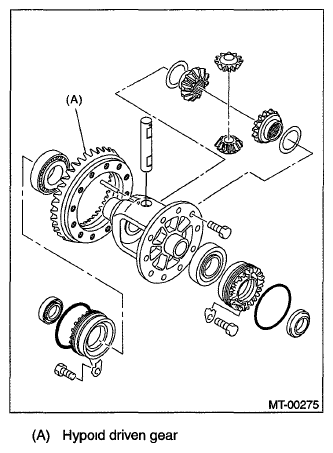

Fig 1: Identifying Hypoid Driven Gear
Courtesy of SUBARU OF AMERICA, INC.
Drive out the straight pin from differential assembly toward hypoid driven gear side.
ST 899904100 REMOVER

Fig 2: Driving Out Straight Pin From Differential Assembly
Courtesy of SUBARU OF AMERICA, INC.
Pull out the pinion shaft, and remove the differential bevel pinion, differential bevel gear and washer.

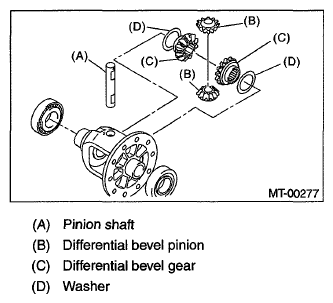

Fig 3: Identifying Pinion Shaft, Differential Bevel Pinion, Differential Bevel Gear And Washer
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the roller bearing.
ST 899524100 PULLER SET

Fig 4: Identifying ST 899524100 Puller Set
Courtesy of SUBARU OF AMERICA, INC.
