Center Differential: Assembly

Install the ball bearing into the center differential assembly.

CAUTION: Do not apply a load in excess of 10 kN (1 ton, 1.1 US ton, 1.0 lmp ton).

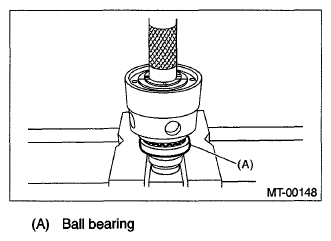

Fig 1: Identifying Ball Bearing

Courtesy of SUBARU OF AMERICA, INC.
