Clutch Pipe And Hose

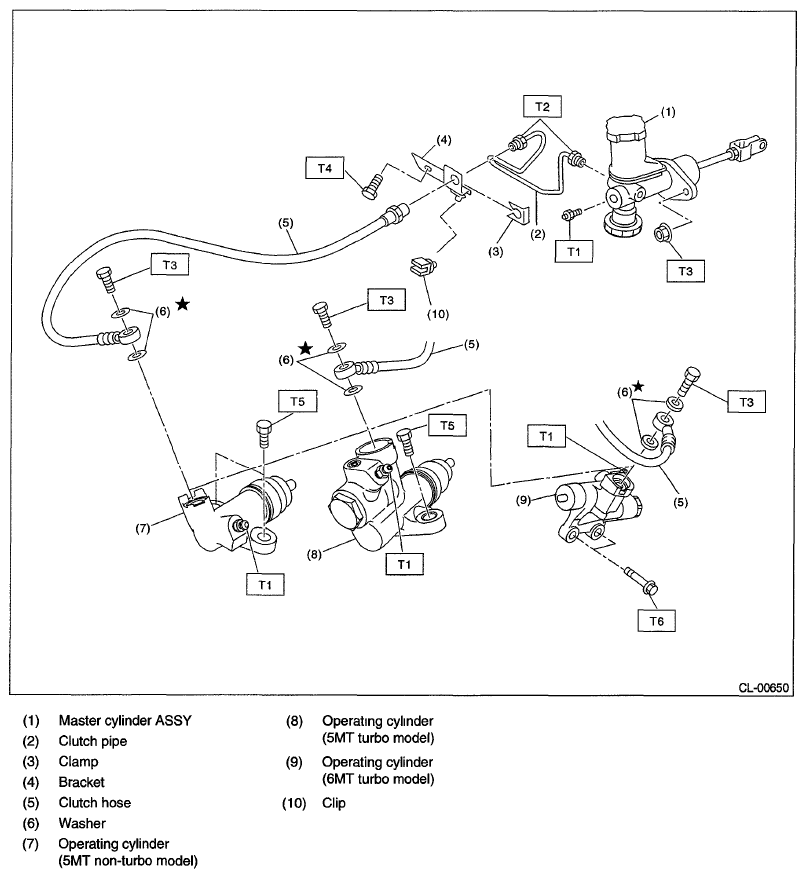

Fig 1: Identifying Clutch Pipe And Hose Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.8(0.8,5.8)

T2: 15(1.5,11.1)

T3: 18 (1.8, 13.3)

T4: 25(2.5, 18.4)

T5: 37(3.8,27.3)

T6: 41(4.2,30.2)
