Home >> Subaru >> 2009 >> Outback i, Standard >> Repair and Diagnosis >> Transmission >> Clutch >> Clutch System >> Clutch Fluid >> Inspection

Clutch Fluid: Inspection

  1. Park the vehicle on a level surface.
  2. Inspect the fluid level using the scale on the outside of the reservoir tank. If the level is below "MIN", add fluid to bring it up to "MAX", and also inspect for leakage.

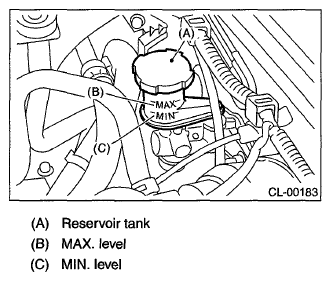

    Fig 1: Identifying Reservoir Tank Fluid MAX And MIN Level
    G06338634Courtesy of SUBARU OF AMERICA, INC.
