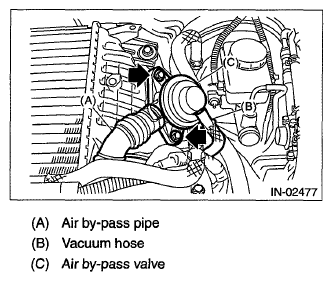

Air By-pass Valve: Installation
WARNING: This page is about a different variant/trim than selected.
Install in the reverse order of removal.
NOTE:
- Use new O-rings.
- Be careful not to pinch the O-ring.
Tightening torque: 6.5 N.m (0.7 kgf-m, 4.8 ft-lb)
Courtesy of SUBARU OF AMERICA, INC.
