6MT Model

  1. Insert the gear shift lever from the room side.
    NOTE: Insert the rod and the stay, and position the lever on top of the transmission mount.
  2. Mount the cushion rubber on the vehicle body.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

    Fig 1: Identifying Cushion Rubber
    G05002330Courtesy of SUBARU OF AMERICA, INC.
  3. Move the transmission to the right side of the vehicle, and attach the joint COMPL and stay.

    Tightening torque:

    T1: 12 N.m (1.2 kgf-m, 8.9 ft-lb)

    T2: 32 N.m (3.3 kgf-m, 23.6 ft-lb)

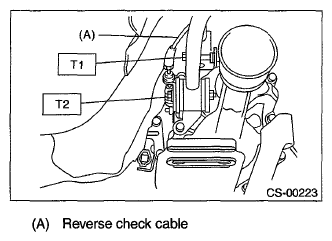

    Fig 2: Identifying Reverse Check Cable
    G06337002Courtesy of SUBARU OF AMERICA, INC.
  4. Install the crossmember. Ref. to INSTALLATION , Transmission Mounting System.
  5. Install the reverse check cable end, washer and snap pin to the reverse check lever.
    NOTE:
    • Take care to install the snap pin in proper direction.
    • Before installing, adjust the reverse check cable. Ref. to ADJUSTMENT  , Reverse Check Cable.

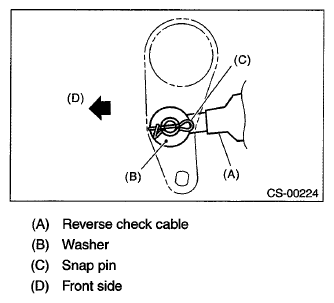

      Fig 3: Identifying Reverse Check Cable, Washer And Snap Pin
      G06337003Courtesy of SUBARU OF AMERICA, INC.
  6. Install the heat shield cover.
    Fig 4: Identifying Heat Shield Cover
    G05019661Courtesy of SUBARU OF AMERICA, INC.
  7. Install the rear exhaust pipe and muffler. Ref. to INSTALLATION , Rear Exhaust Pipe. Ref. to INSTALLATION , Muffler.
  8. Install the under cover.
  9. Install the plate assembly to the vehicle body.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

    1. Set the plate assembly to the vehicle.
    2. Temporarily tighten the bolt (A).
    3. Tighten the bolt (B).
    4. Tighten the bolt (A).
    5. Tighten the bolts (C) and (D).
      Fig 5: Identifying Plate Assembly Bolts
      G05341877Courtesy of SUBARU OF AMERICA, INC.
  10. Install the harness clamp to the plate assembly.
  11. Install the boot and insulator assembly, and secure with a clamp.
    Fig 6: Identifying Bushing And Insulator Assembly
    G05019715Courtesy of SUBARU OF AMERICA, INC.
  12. Install the front cover assembly.
  13. Install the console box. Ref. to INSTALLATION , Console Box.
  14. Check that the gear can be shifted accurately into each gear ranges.
