Rear Suspension

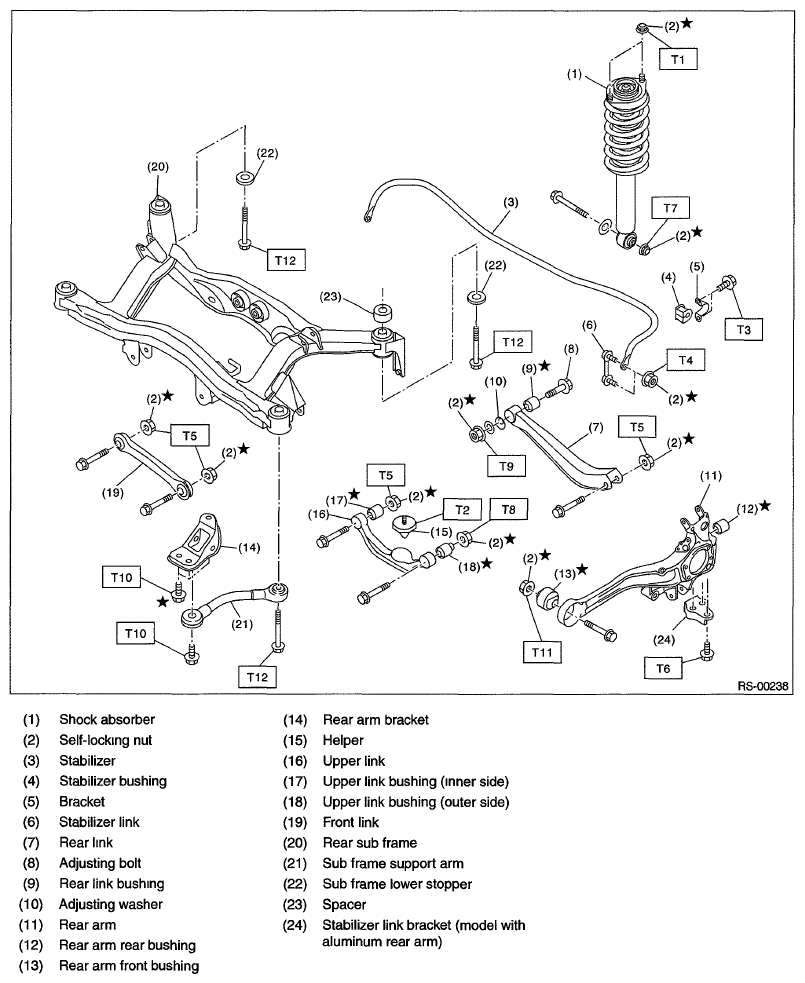

Fig 1: Exploded View Of Rear Suspension

G06338726

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 30 (3.1, 22.4)

T2: 32 (3.3, 24)

T3: 38 (3.9, 28)

T4: 44 (4.5, 32.5)

T5: 57 (5.8, 42)

T6: 60 (6.1, 44)

T7: 62 (6.3, 46)

T8: 65 (6.6, 48)

T9: 120 (12.2, 89)

T10: 125 (12.7, 92)

T11: 150 (15.3, 111)

T12: 175 (17.8, 129)
