Components With Torque Specifications

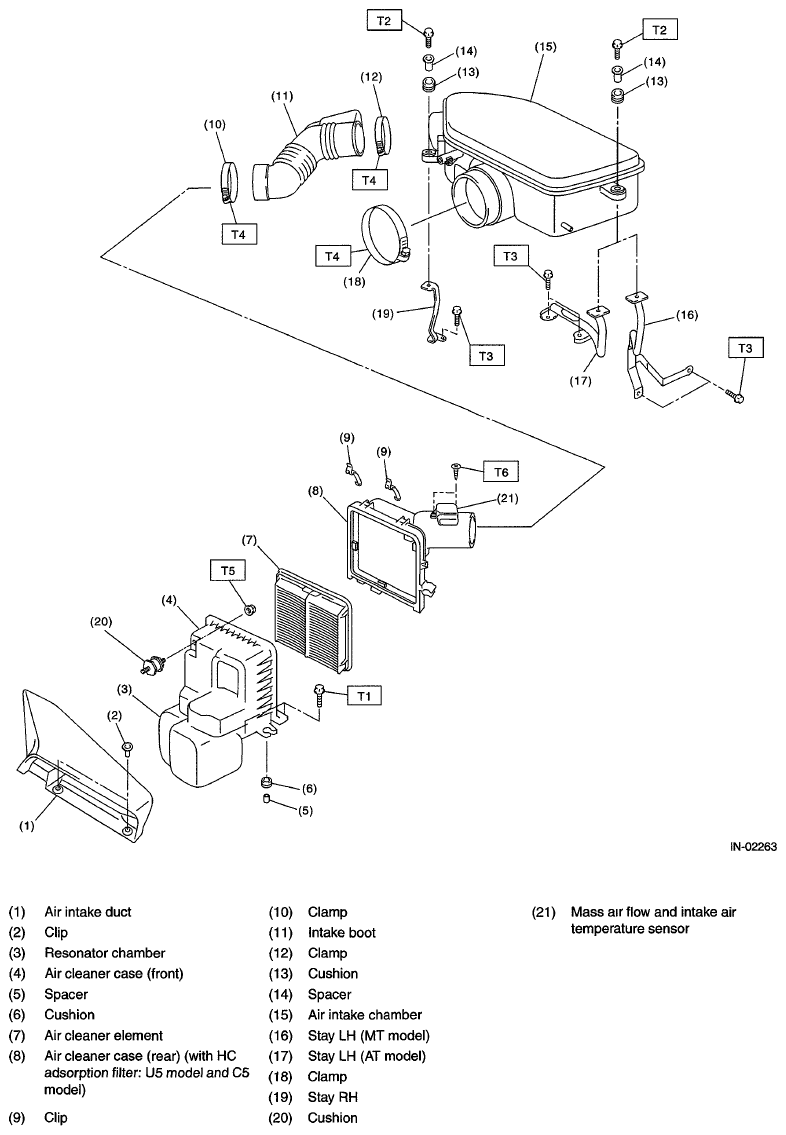

Fig 1: Exploded View Of Air Cleaner Assembly

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6(0.6,4.4)

T2: 6.5(0.7,4.8)

T3: 16(1.6,11.8)

T4: 3(0.3,2.2)

T5: 7.5(0.8,5.5)

T6: 1(0.1,0.7)
