Differential Gear

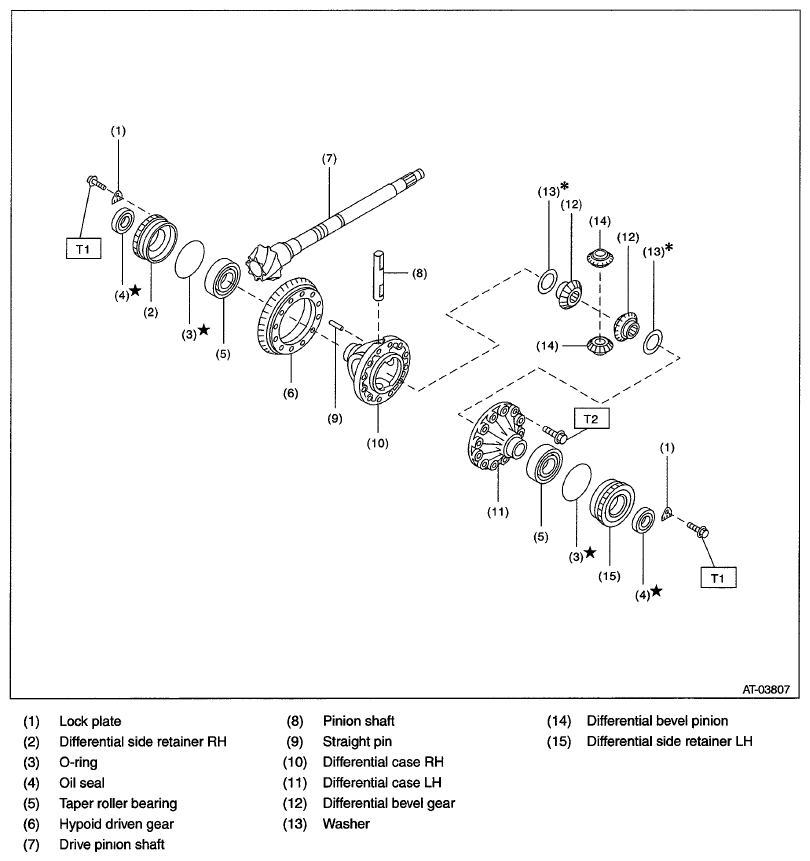

Fig 1: Differential Gear Replacement Components With Torque Specifications

G06337536

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1. 25(2.5, 18.4)

T2: 70(7.1,51.6)
