Engine Controls - Engine (Diagnostics) (H4DOTC): Electrical Component Location: Location: Sensor

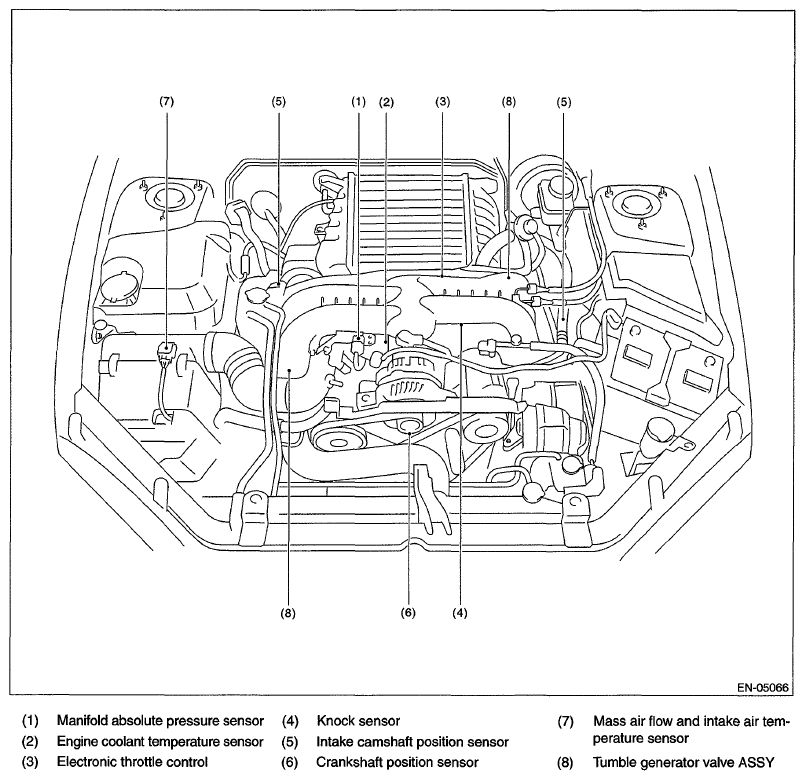

Fig 1: Identifying Sensor Electrical Component Location (1 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

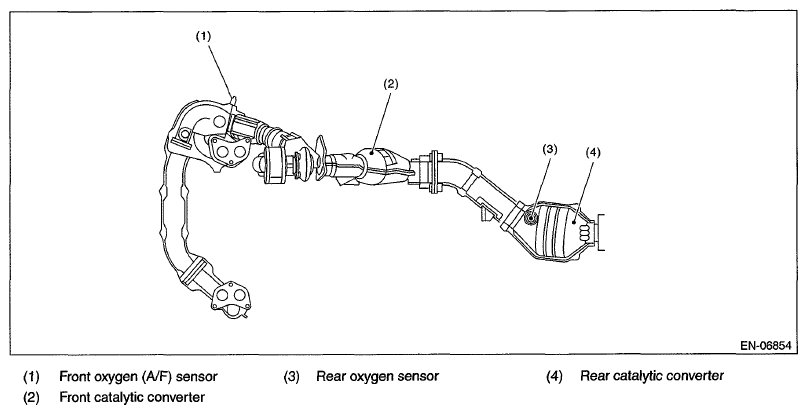

Fig 2: Identifying Sensor Electrical Component Location (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

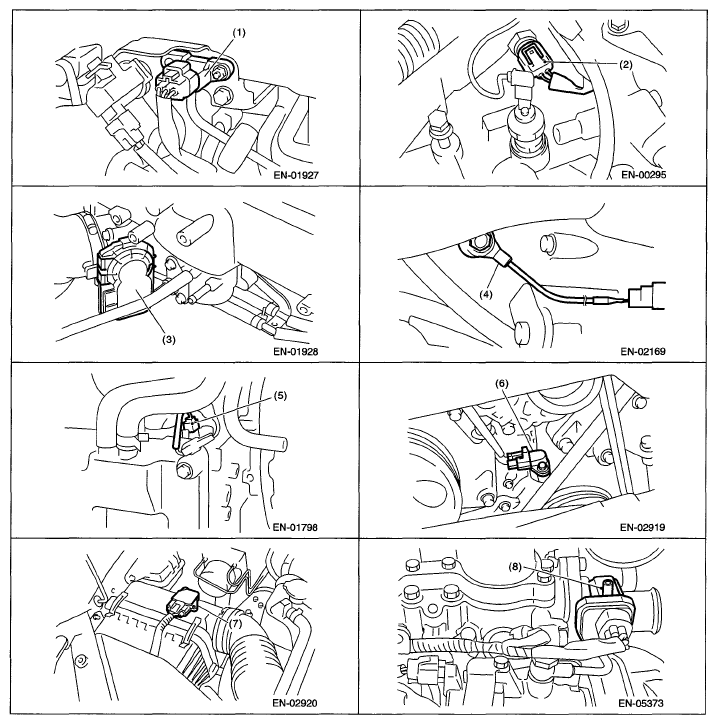

Fig 3: Identifying Sensor Electrical Component Location (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

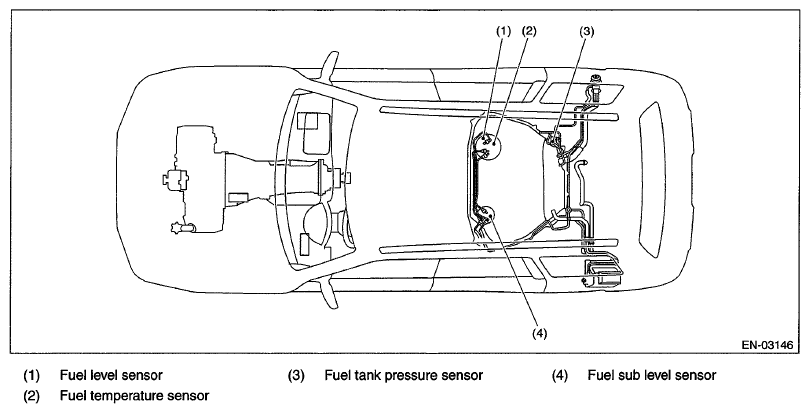

Fig 4: Identifying Sensor Electrical Component Location (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

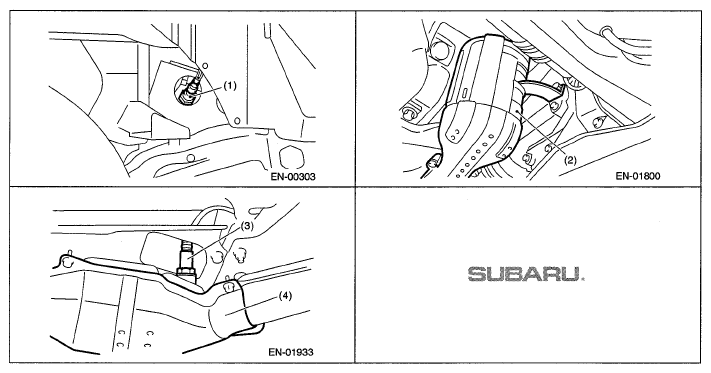

Fig 5: Identifying Sensor Electrical Component Location (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Identifying Sensor Electrical Component Location (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.
