Draining Fuel (With SUBARU Select Monitor)

WARNING: Place "NO OPEN FLAMES" signs near the working area.

CAUTION: Be careful not to spill fuel.

NOTE:

If the fuel pump cannot be actuated, refer to DRAINING FUEL (THROUGH THE FUEL FILLER HOSE) , PROCEDURE, Fuel.
Be careful not to let the battery runout.

Release the fuel pressure. Refer to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel.
Attach ST to the fuel delivery pipe and push ST in the direction of arrow mark to disconnect the fuel delivery hose.
ST 42099AE000 QUICK CONNECTOR RELEASE
CAUTION:
- Be careful not to spill fuel.
- Catch the fuel from hoses using a container or cloth.

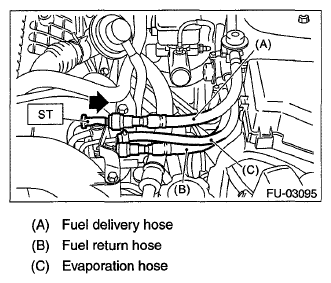

  Fig 1: Identifying Fuel Delivery Hose, Fuel Return Hose And Evaporation Hose
  Courtesy of SUBARU OF AMERICA, INC.
Connect ST to the fuel delivery hose.
ST 18471AA000 FUEL PIPE ADAPTER
Connect the gasoline proof hose to ST and put the end of the hose in the container.
Drive the fuel pump and drain the fuel using Subaru Select Monitor. Refer to FUEL PUMP CONTROL (ON/OFF DRIVE) , OPERATION, System Operation Check Mode.
CAUTION: Be careful not to spill fuel.
