Body Integrated Unit: Removal

NOTE:
  • When replacing the body integrated unit, check the current settings and record it. Ref. to CONFIRMATION OF CURRENT SETTING , OPERATION, Subaru Select Monitor.
  • When replacing the body integrated unit, all immobilizer keys also must be replaced and registered again.
  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower cover. Ref. to REMOVAL , Instrument Panel Lower Cover.
  3. Disconnect the connector of body integrated unit.
    CAUTION: Be careful to keep water and other foreign materials away from body integrated unit.
  4. Remove two mounting nuts for body integrated unit bracket, and remove the body integrated unit.

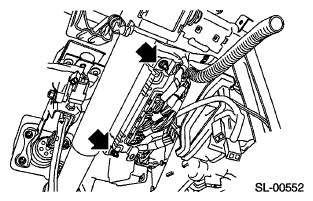

    Fig 1: Locating Body Integrated Unit Bracket Mounting Nuts
    G06340378Courtesy of SUBARU OF AMERICA, INC.
