Components With Torque Specifications: INTERCOOLER

WARNING: This page is about a different variant/trim than selected.

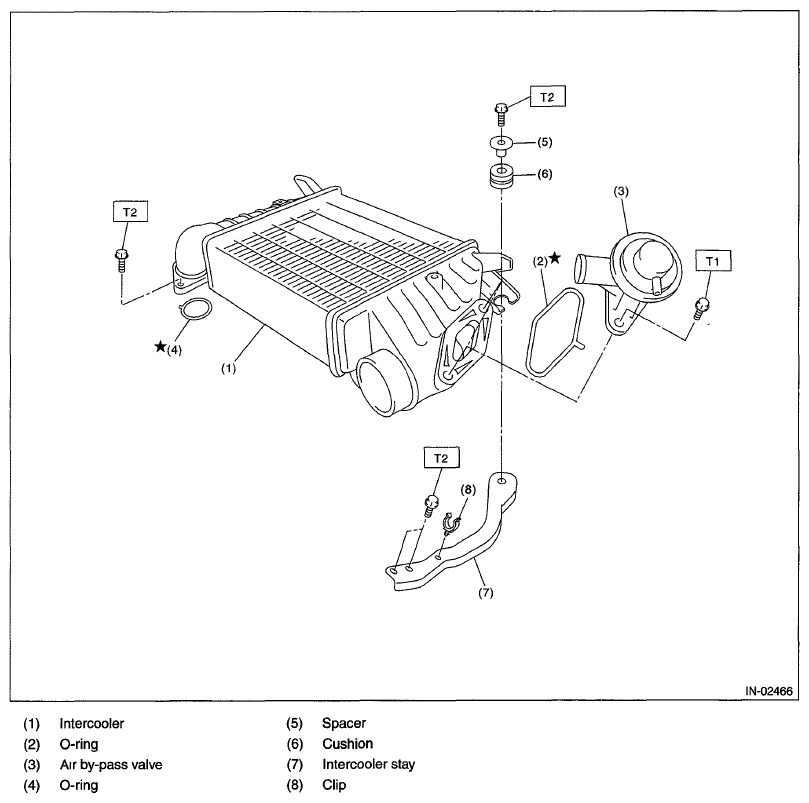

Fig 1: Identifying Intercooler Components
G06335293Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.5 (0.7,4.8)

T2: 16 (1.6, 11.8)
