Air Cleaner

WARNING: This page is about a different variant/trim than selected.

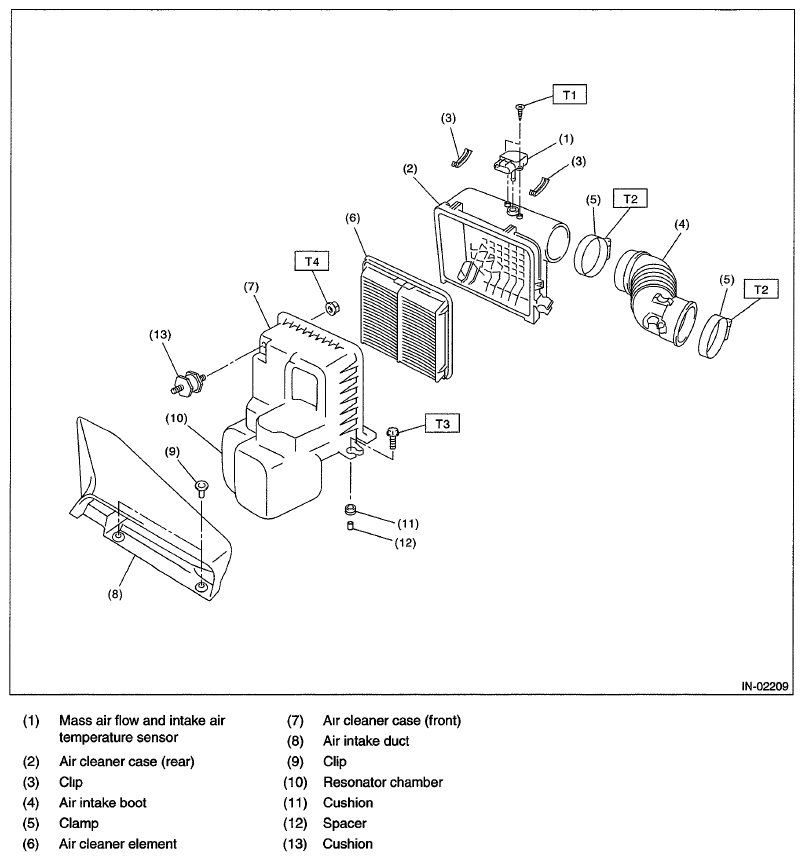

Fig 1: Identifying Air Cleaner Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1(0.1,0.7)

T2: 2.5 (0.3, 1.8)

T3: 6(0.6,4.4)

T4: 7.5(0.8,5.5)
