Reduction Drive Gear: Removal

  1. Remove the transmission assembly from vehicle body. Refer to REMOVAL , Automatic Transmission Assembly.
  2. Remove the rear vehicle speed sensor, and separate the extension case from transmission case. Refer to REMOVAL , Extension Case.
  3. Remove the reduction driven gear. Refer to REMOVAL , Reduction Driven Gear.
  4. Using the ST, extract the reduction drive gear assembly.

    ST1 499737100 PULLER SET

    ST2 899524100 PULLER SET

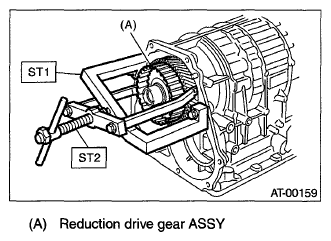

    Fig 1: Extracting Reduction Drive Gear Assembly Using ST1 499737100 And ST2 899524100 Puller Set
    G06337281Courtesy of SUBARU OF AMERICA, INC.
