Oil Charge Pipe: Removal

  1. Remove the air intake chamber. Refer to REMOVAL , Air Intake Chamber.
  2. Remove the oil charge pipe, and then remove the O-ring from the flange side.

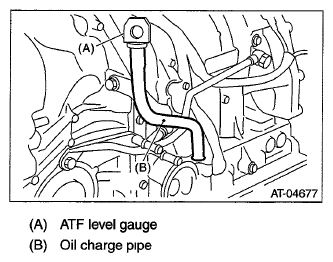

    Fig 1: Identifying ATF Level Gauge And Oil Charge Pipe
    G06337239Courtesy of SUBARU OF AMERICA, INC.
