Home >> Subaru >> 2009 >> Outback Limited >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering System >> Reservoir Tank >> Removal

Reservoir Tank: Removal

  1. Drain fluid from the reservoir tank.
  2. Disconnect the hose from reservoir tank.
    CAUTION: To prevent foreign matter from entering the hose and pipe, cover the open ends of them with clean cloth.

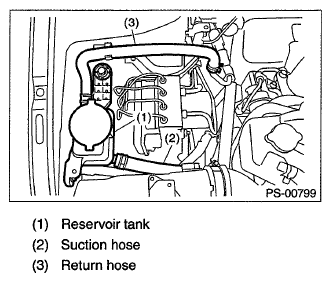

    Fig 1: Identifying Reservoir Tank With Suction And Return Hoses
    G06339648Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the reservoir tank from the body.
